Operating temperature range
: 0/+55 degrees Celsius
♦
Memory
: Non volatile with battery backup
♦
Keyboard
: Silicon rubber, backlight
♦
Weight (G
RAY
L
EVELS
)
: 800 gr.
♦
Weight (C
OLOR
)
: 950 gr.
When the package containing the chart plotter is opened for the first time after
purchase, please make sure that the following contents are present (if any item is
missing, please contact your local dealer):
♦
Quick disconnect bracket
♦
Chart plotter's protective cover
♦
Fuse 2 Amp. + fuseholder
♦
User Manual
♦
Flush mounting kit
(TIGERSHARK Plus/NAUTILUS iGPS Plus)
♦
Smart DGPS WAAS Receiver with cable 15 mt/45 feet
(TIGERSHARK Plus/
NAUTILUS iGPS Plus)

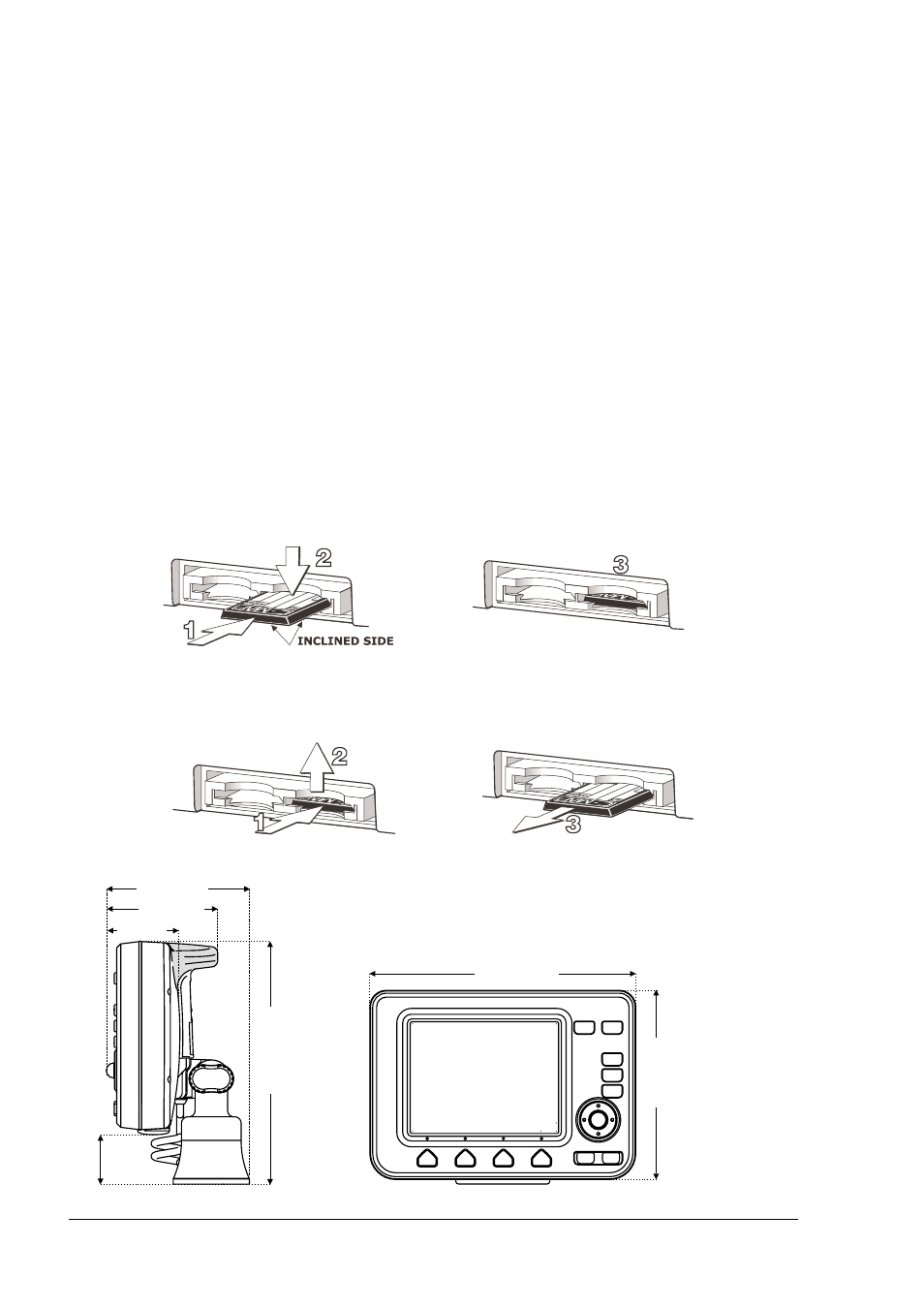

INSERTING/REMOVING PROCEDURE
Inserting the C-CARD
Hold the C-CARD by the short inclined side so that you can see the C-MAP label.
Gently push the C-CARD into one of the two slots (1); push the C-CARD in as far
as it will go, then move it to the bottom (2) to hold fixed into the slot (3).
Removing the C-CARD
Press lightly the C-CARD you wish to remove (1) and move it to the top (2) until
you hear a click: the C-CARD will eject out of the slot (3).
CHART PLOTTER DIMENSIONS
For DISPLAY dimensions
please refer to the
previous paragraph
“
”
TECHNICAL
SPECIFICATIONS
209.5 [8.3”]
149
[5.9
”]
39
[1.5
”]
87 [3.5”]
113 [4.4”]
191.5
[7.5
”]
50 [2”]
GRAY parts are present ONLY on
chart plotter WITH GPS INTERNAL
