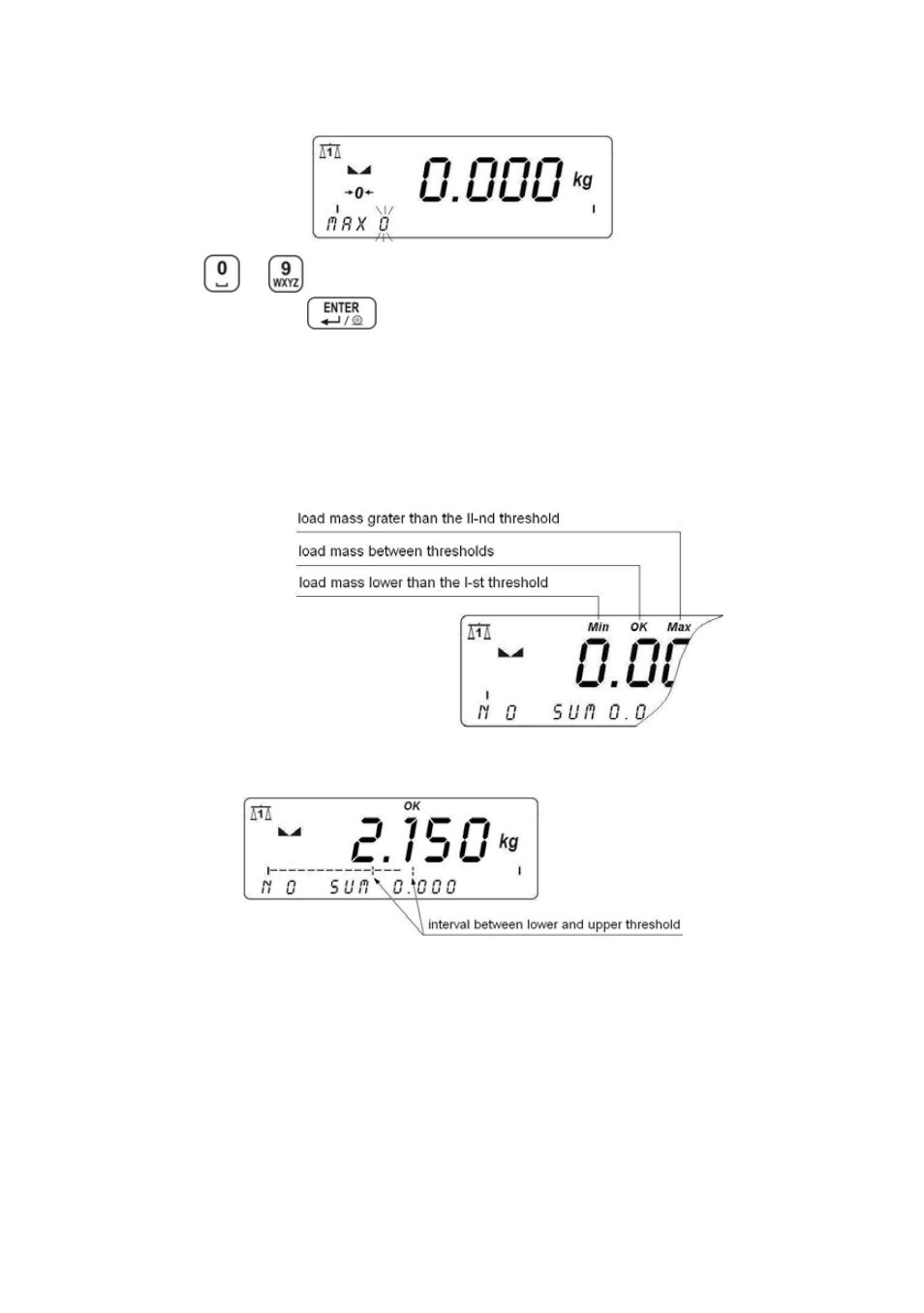

• You will see the following display:
• Using to
numerical keys inscribe a MAX threshold
and confirm with ,
• Software returns to WEIGHING.
While setting these thresholds following features are important:
• Symbols:
Min, OK, Max in the upper line of the display:
• Designation of the proper interval (OK) on the bargraph:
• Three
fields of signalling LEDs over the display:
Left – red – when this field shines the mass is lower than
the Min threshold;
Middle – green – Designation of the proper interval OK
between MIN and MAX thresholds;
Right – red – when this field shines the mass is higher
than the Max threshold.
