32.2.2. Setting RS232 parameters
On order to establish the connection with EDYTOR WPW through
RS232 interface follow the remarks below:
• Run
EDYTOR WPW,
• Connect the scale to a computer using cable PT0020 (see ch. 25),
• Set the port for communication with a computer – parameter
set to RS232 (1) (see ch. 15.1.1),
• Set transmission parameters:
- submenu (see ch. 14.1.3),

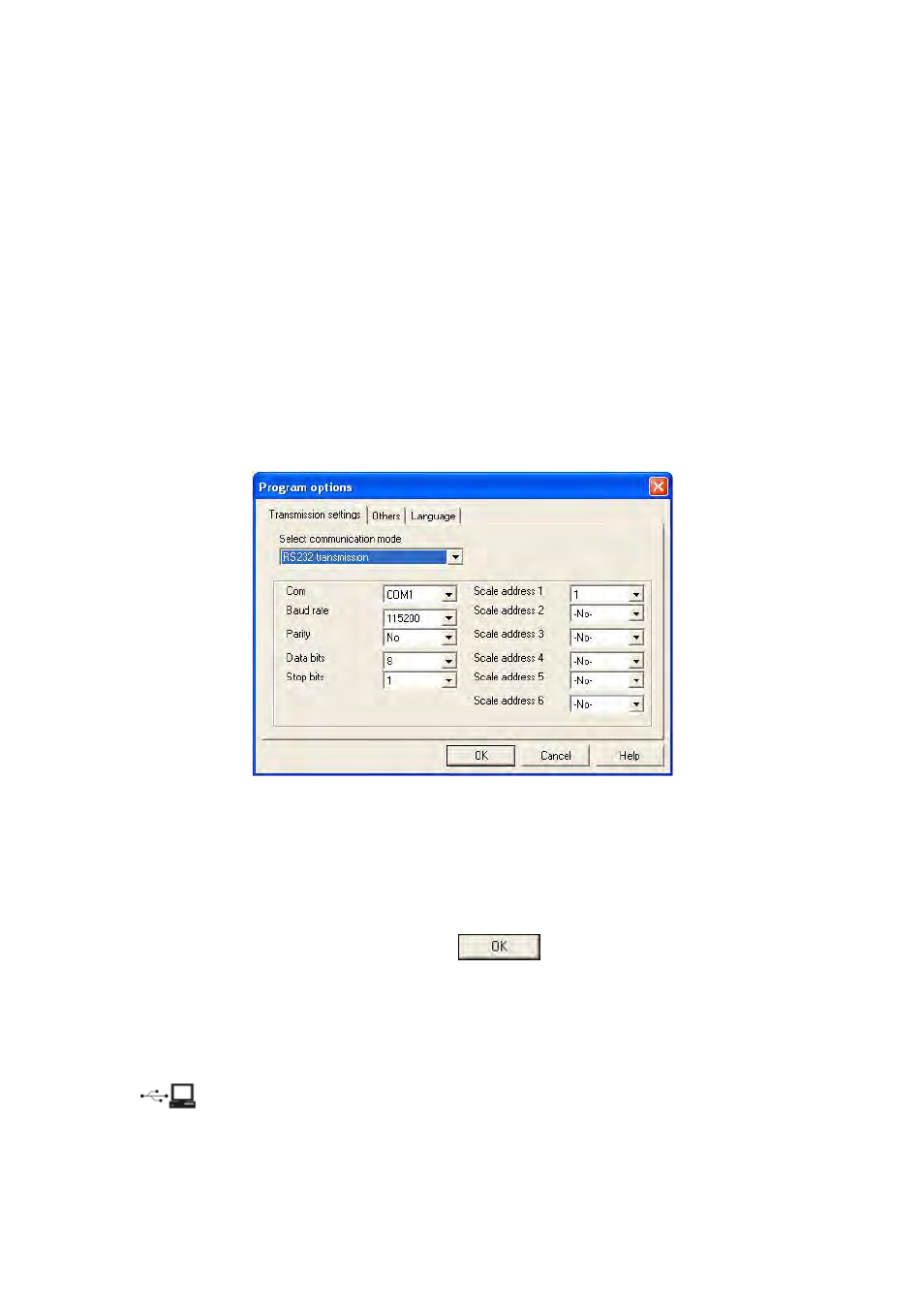

• Click on the button „Settings” to show the window below:
• In the overlap :
− Set the communication mode as „RS232 transmission”,
− Select an appropriate com number,
− Configure the selected port (baud rate, parity, data bits, stop bits),
• Confirm the changes by clicking
,
• Rerun the program,
• Press
the „Connect” button,
• The appropriate communication with scales is signalled by pictogram
in the left part of the display,
• Transmission problems are signalled by the message window:
