27.2.4. Connections to AN module

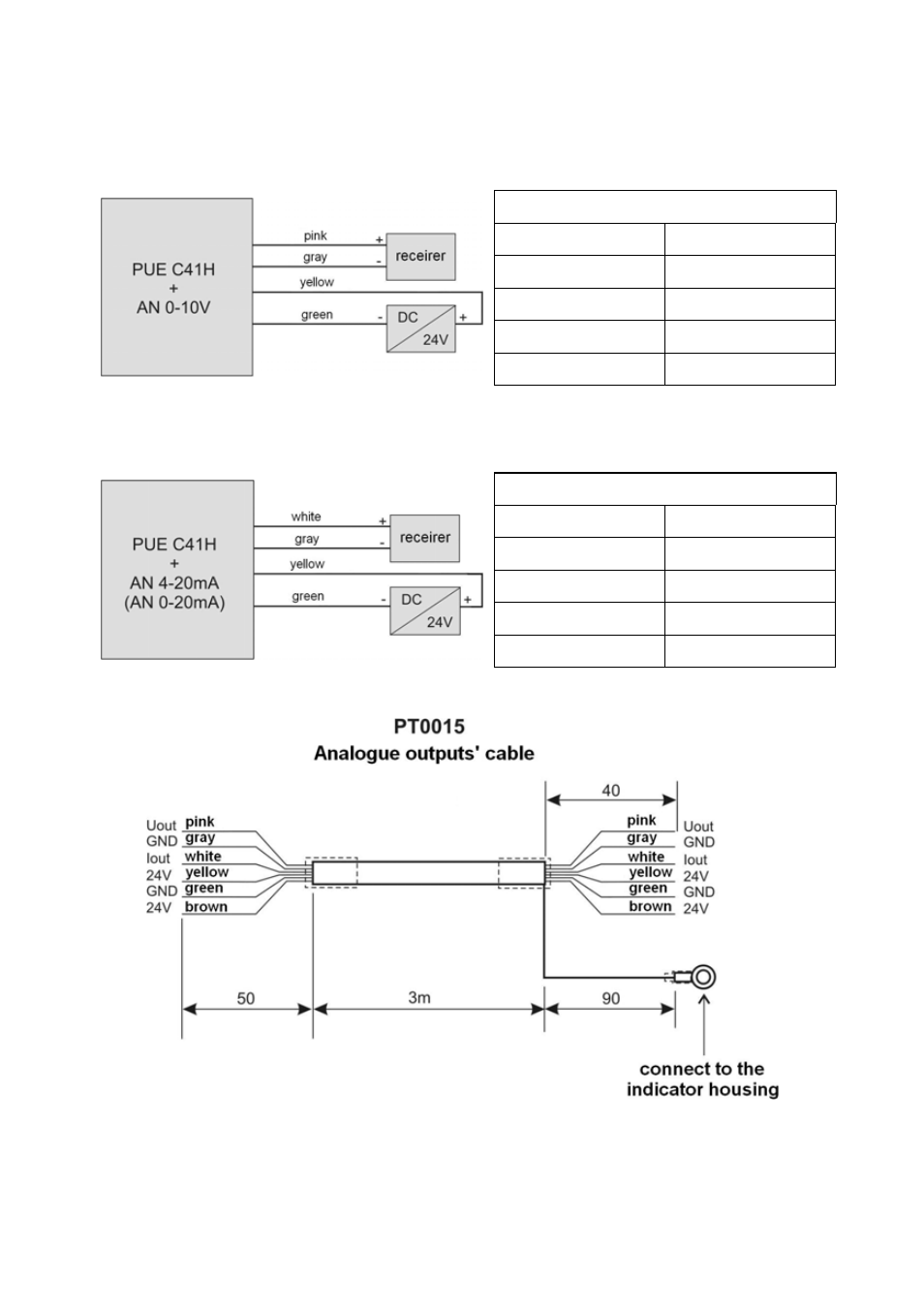

Drawing of connections of voltage output:
COLOURS OF WIRES
Colour Signal
Pink
U
OUT
+
Gray GND
Yellow +24V
DC
Green GND
Drawing of connections of current loop:
COLOURS OF WIRES
Colour Signal
White
I
OUT
+
Gray GND
Yellow +24V
DC
Green GND
Cable for analogue output
