• In the overlap :

− Set the communication type „Ethernet Transmission TCP”,
− „IP address 1” the same as in the scale,
− „Port”/”Com” the same as in the scale,

• Confirm the changes by clicking

• Rerun the program,

• Press

the

„Connect” button,

• The appropriate communication with scales is signalled by pictogram

in the left part of the display,

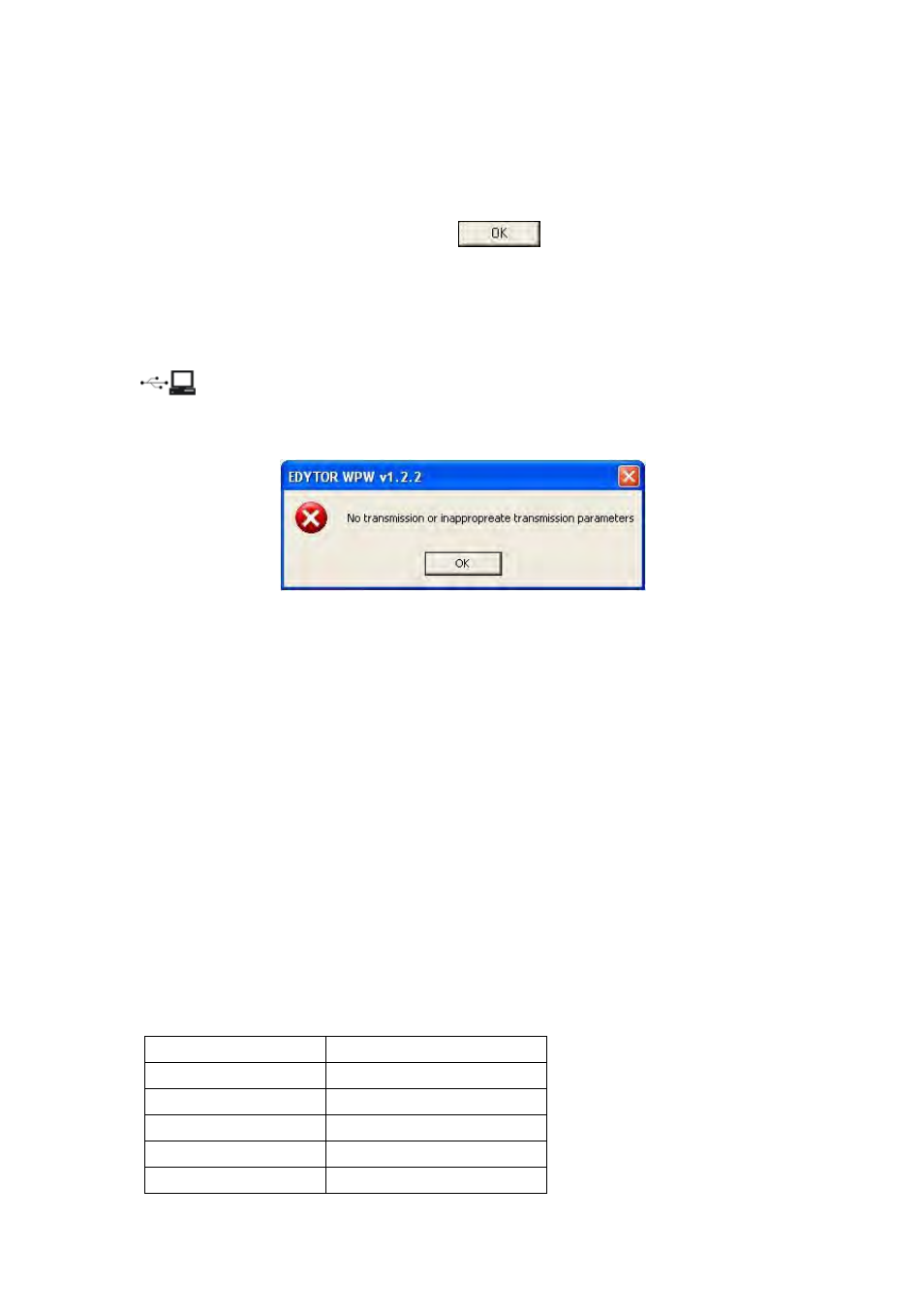

• Transmission problems are signalled by the message window:

32.3. Example of dosing application

A standard WPW scale (3 inputs / 3 outputs in connector)
have a task to perform a two-threshold dosing (bulk/precise dosing)
in the manual mode with external buttons START and STOP process.

Caution:
Simple dosing systems can use one of three different methods: 1 – manual
mode, 2 – automatic mode, 3 – negative dosing (see ch.. 24.8.1).

Procedure:

1. According to ch.11.2.:

• Enter the group of parameters

and configure the buttons according to the table below:

TARE B.

PRINT B.

ZERO B.

START B.

IN1

STOP B.

IN2

EXTERN. START
