24.8. Dosing
Standard indicators are equipped with signalling fields and internal circuit
of - 3 optoinsulated inputs (5
÷24V DC), 3 optoinsulated reed relay outputs.
Caution:
1. Working mode „Dosing” does not support continuous printouts;
2. See an example application in chapter 32.3 of this manual;
3. Inductive loads connected to the dosing indicator should have
protections against the coil induction phenomenon. Example
connetion diagrams of dosing indicators outputs with direct and
alternative current protections are in point 32.6 of the manual.
24.8.1. Dosing mode setting
Users can chose one of three different modes .

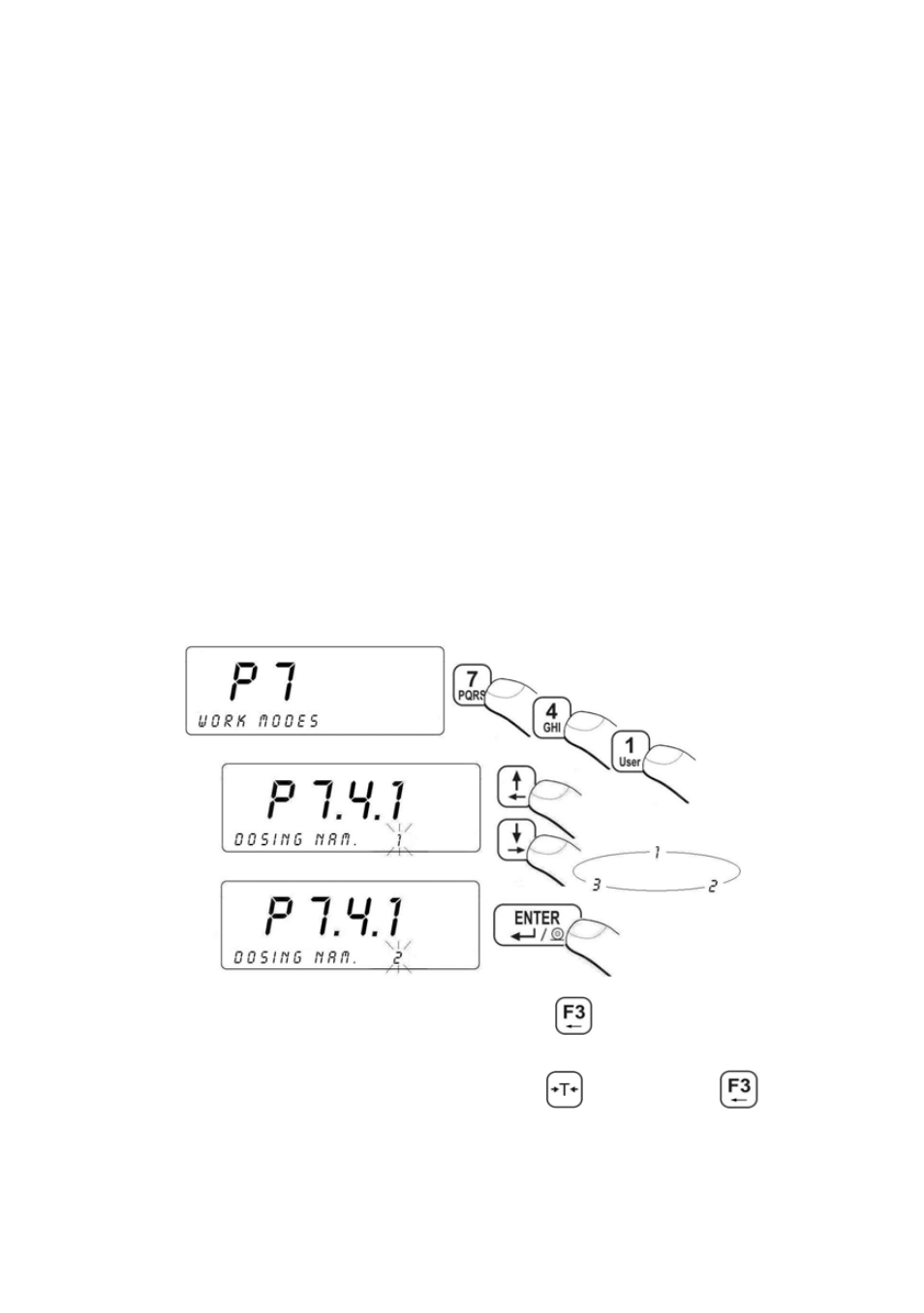

Procedure:
• Enter
and then:
1 - manual operation (after pressing ),
2 - automatic operation,
3 - „-” negative dosing (after tarring and pressing ).
Return to weighing:
See 11.3.
