32.2.3. Setting Ethernet parameters
On order to establish the connection with EDYTOR WPW through
Ethernet interface follow the remarks below:
• Power up the scale and run the EDYTOR WPW program,
• Connect the scale to a computer/switch using a PT0017 or PT0014
cable (depending on the Ethernet module on board – see ch. 27.1.2),
• Set the port for communication with a computer – parameter
set to Ethernet (see ch. 15.1.1),
• Set parameters from the group (see ch. 14.2):
− Parameter should be set to SERVER,
− Parameters , ,
should be set according to the network
supervisor directions,
− set the same as in the computer
program (in networks some ports can be taken),
− Parameter set to 0 in order to prevent
breaking connection.

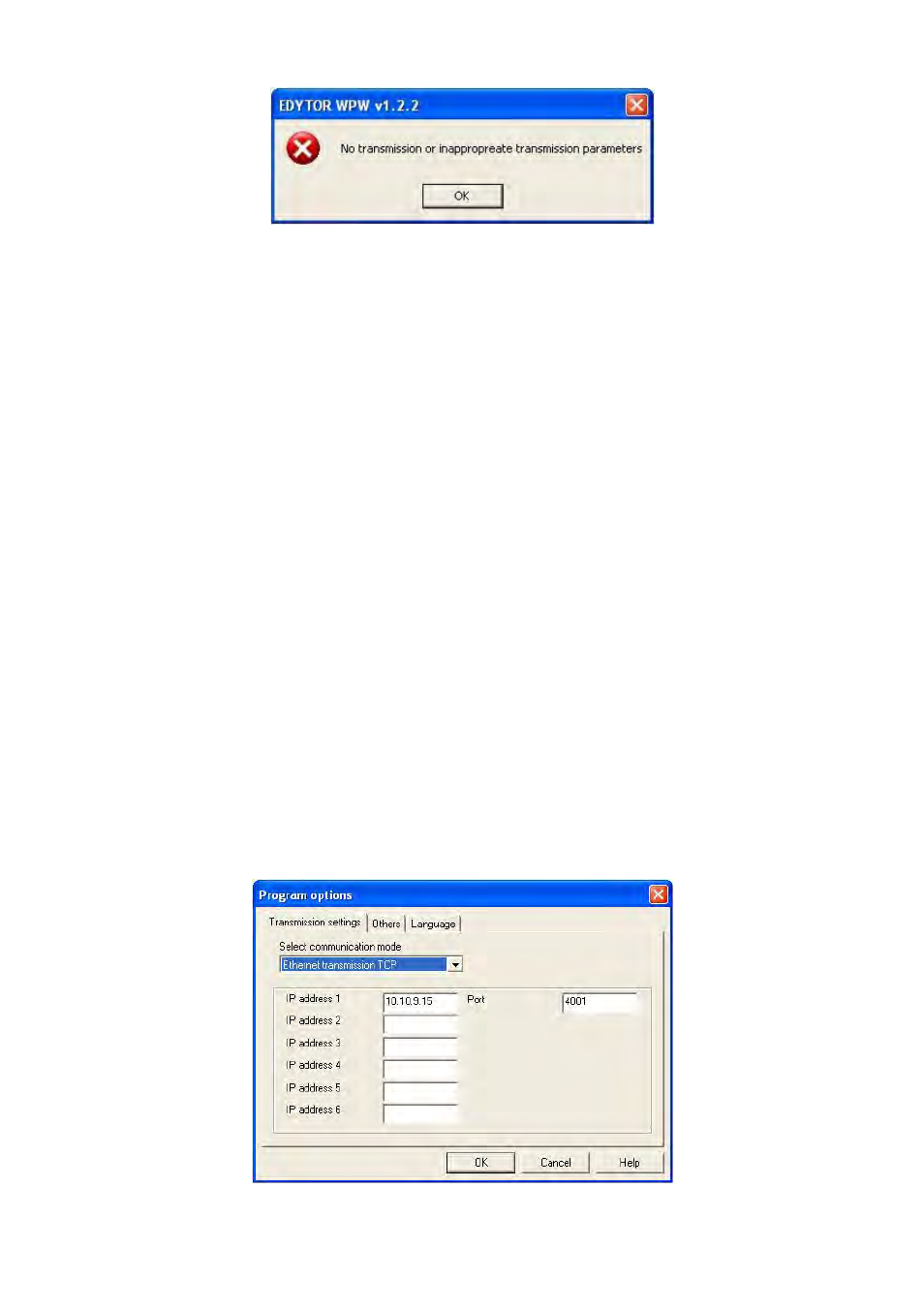

• Press
the „Settings” button:
- 155 -
