27.5.4. Description of input output wires
Signals led out with two cables10x0,5mm
2
with numbered conductors.
INPUTS OUTPUTS
Wire number
description
Wire number
description
1 IN
1
1 OUT1
2 IN
2
2 OUT2
3 IN
3
3 OUT3
4 IN
4
4 OUT4
5 IN
5
5 OUT5
6 IN
6
6 OUT6
7 IN
7
7 OUT7
8 IN
8
8 OUT8
9 GND
IN 9 COMMON
27.6. DP1 – module for an additional platform

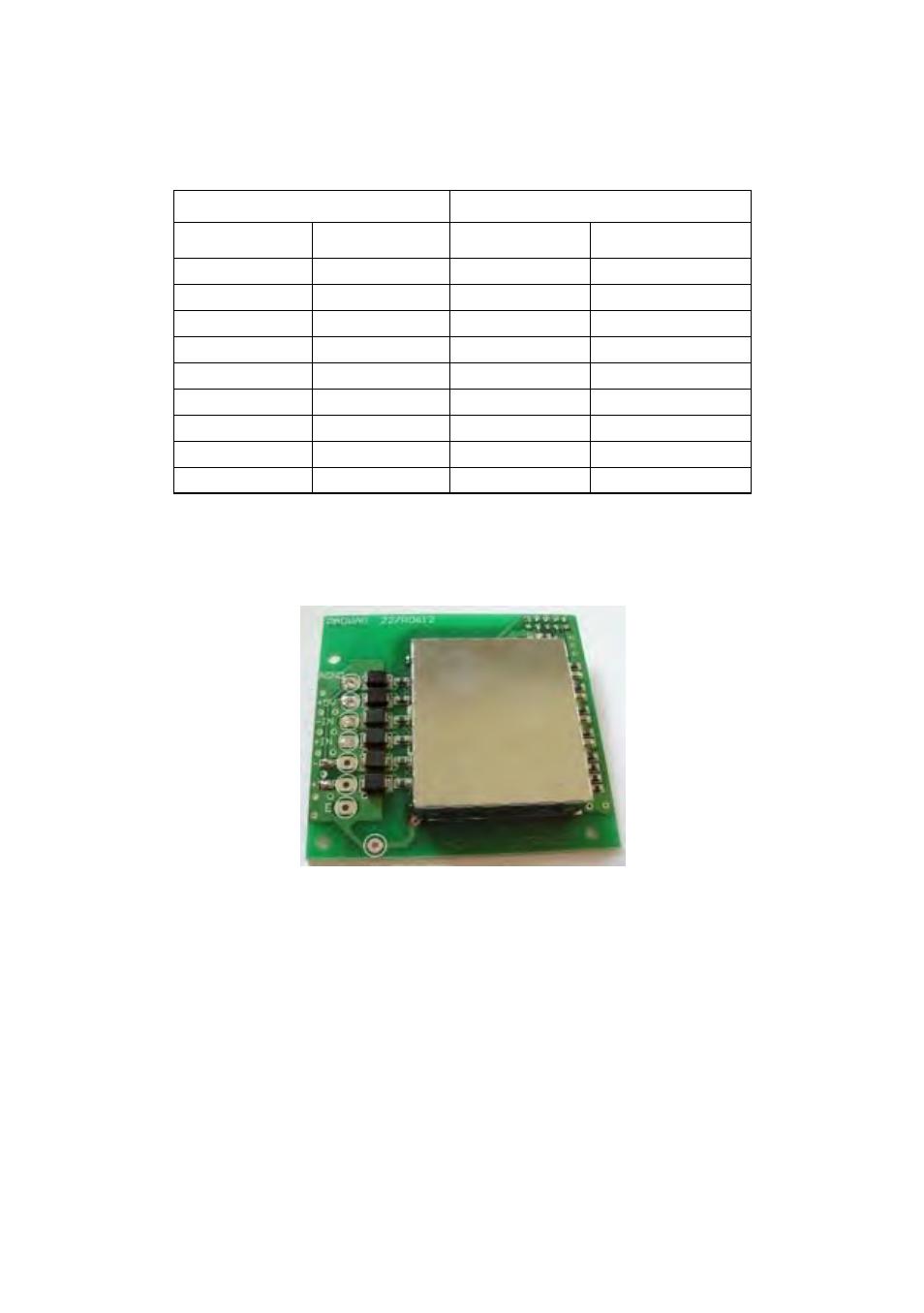

DP1 PCB
DP1 modules increase functionality of PUE C41H indicators by possibility
of adding an additional platform. It is intended to mount inside the indicator.
DP1 modules require an additional gland to led in the platform cable.
