platforms connected
to indicators in metal
housing via a cable only
platforms electrically
connected to indicators’
metal housings e.g.
pillars, racks
Load cells without
internal shield
connection to the
tensometer body
POINT C E
Load cells with internal
shield connection to
the tensometer body
POINT C POINT C
Point C – screwed terminal electrically connected to the metal housing
of the indicator (possible using of soldering eye)
E – soldering pad on a DP1 PCB

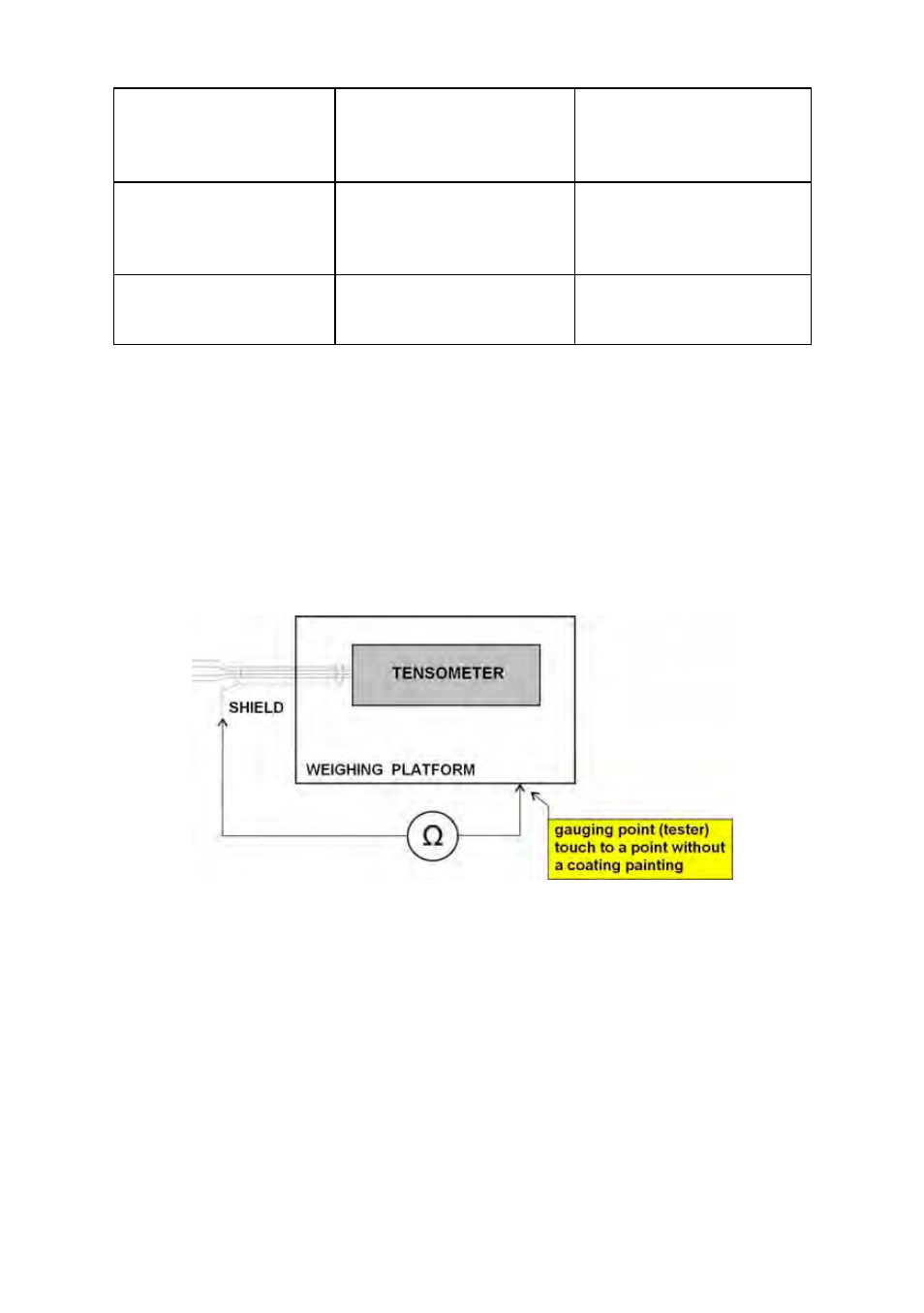

The way of checking connection between the shield and the
tensometer body
Use an ohmmeter for this purpose.
27.6.4. Installing in PUE C41H housing
DP1 modules are intended to mount inside PUE C41H housings.
It is mounted to the main board to the 10-pin J18 connector. For DP1
module an additional gland is installed on the back wall of the housing.
1. Unplug the scale from mains;
2. Unscrew and take off the back wall of the housing;
3. Install your module in J18 on the main board;
