Operating Instructions Temperature Indicating Controller CF1H
V 1.2
•
01/2007 - 74 -

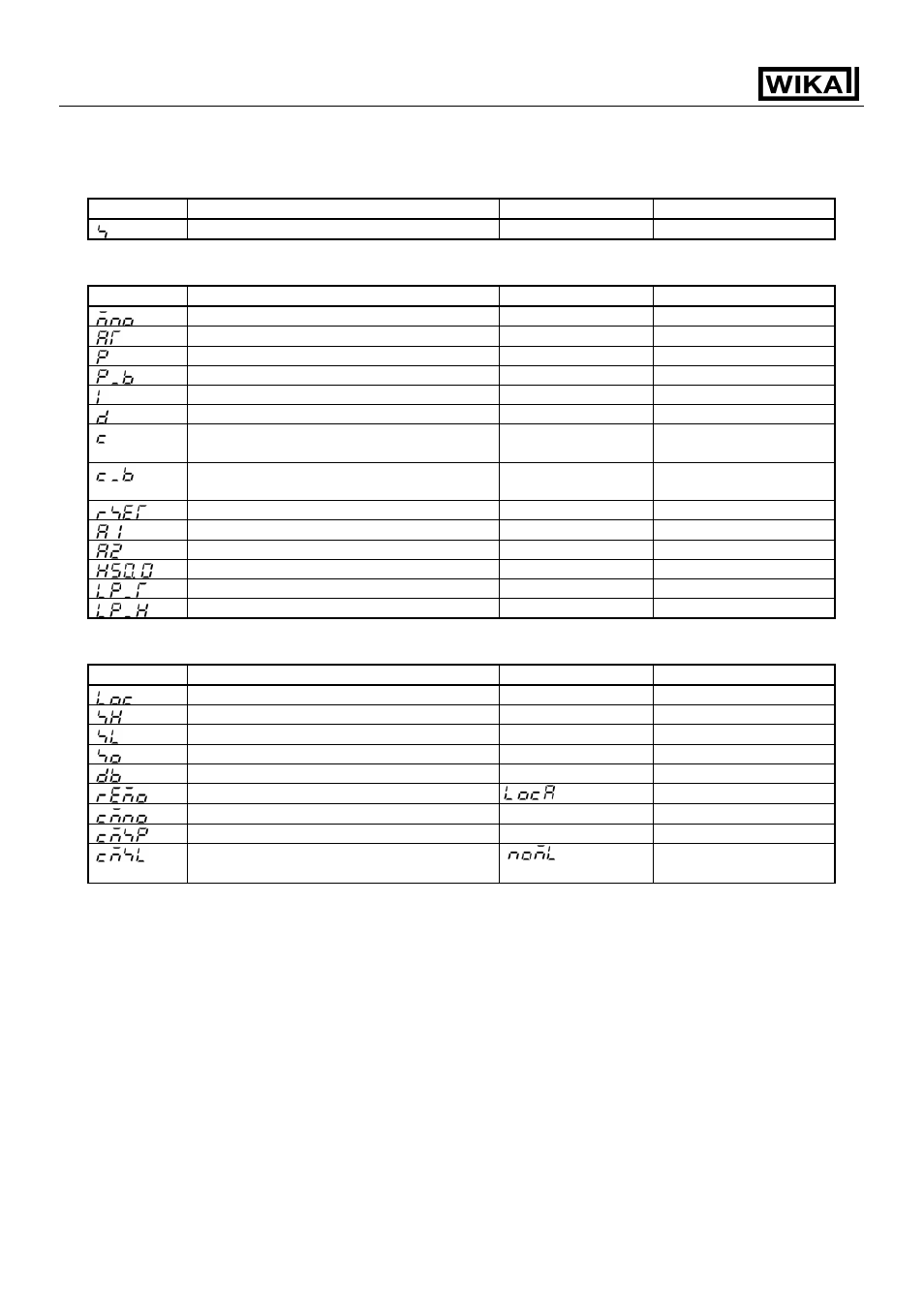

14. Character table
Character Item Initial Data
Main setting 0 °C
Character Item Initial Data
Setting value memory number 1
Auto-tuning Perform/Cancel - - - -: Cancel
Main proportional band 2.5 %
Cooling proportional band 1.0 times
Integral time setting 200 s
Derivative time setting 50 s
Main proportional cycle R/M: 30 s
S/M: 3 s
Cooling proportional cycle R/M: 30 s
S/M: 3 s
Manual reset setting 0.0 °C
Alarm 1 setting 0 °C
Alarm 2 setting 0 °C
Heater burnout alarm setting 0.0 A
Loop break alarm time setting 0 minutes
Loop break alarm span setting 0 °C
Character Item Initial Data
Setting value lock designation - - - -: Unlock
Main setting value high limit 400 °C
Main setting value low limit 0 °C
Sensor correction setting 0.0 °C
Overlap band/Dead band setting 0 °C
Remote/Local change
: Local
Instrument number setting 0
Transfer rate selection 9600 bps
Communication protocol : WIKA
standard protocol
