8.1.3 The Transition Menu Items

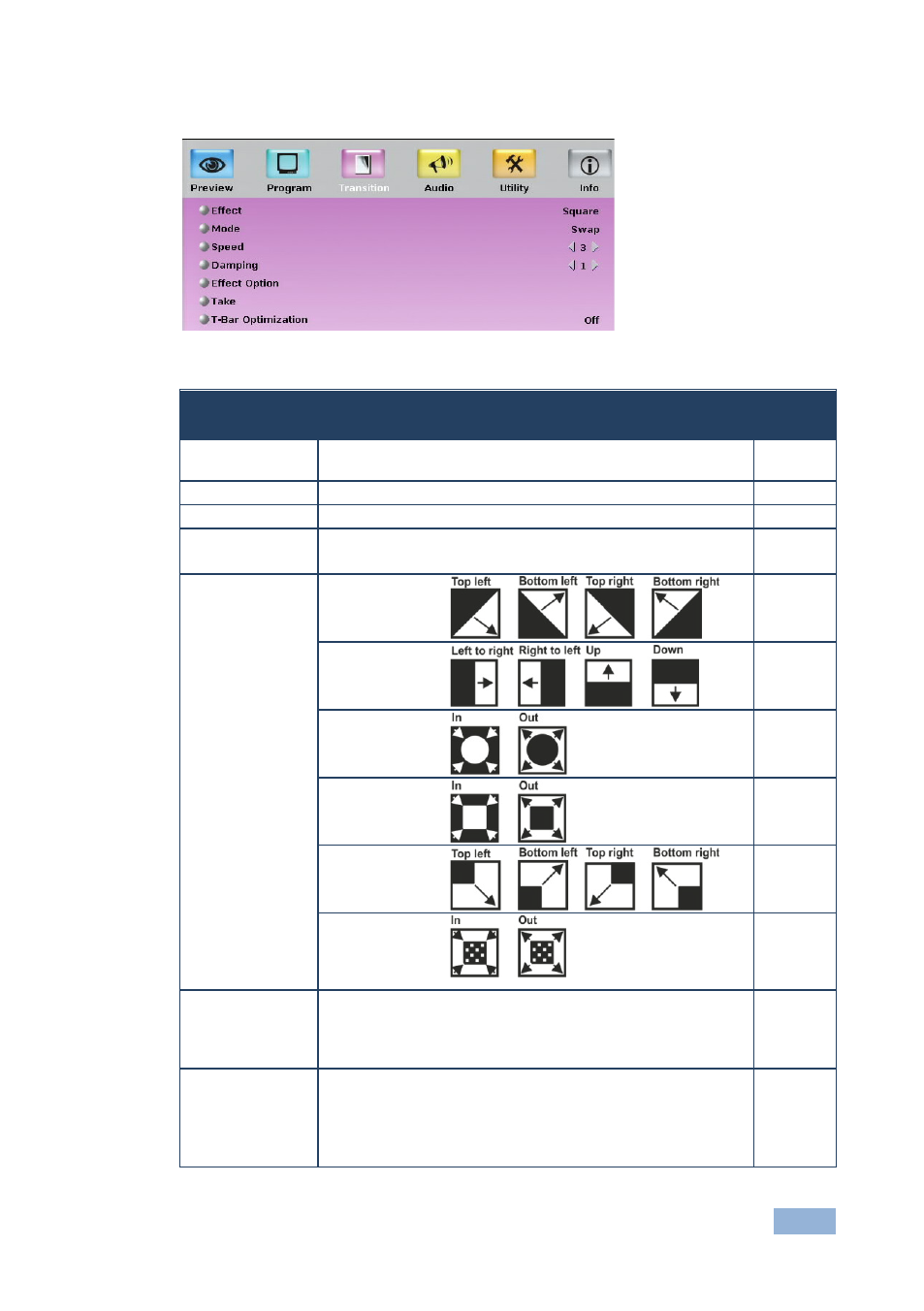

Figure 15: Transition Screen
Transition Screen Functions
Setting
Function Selection/Range Default
Effect Set the transition effect: Cut, Fade, Diagonal, Wipe, Circle,
Square, Corner or Chessboard
Fade
Mode Set the transition mode: Swap or Follow Swap
Speed Set the transition speed: 1 to 5 3
Damping Set the transition damping: 0 to 4
When using the VP-747 together with the T-Bar controller
0
Effect Option Diagonal: Top Left
Wipe: Left to
Right
Circle: Out
Square: In
Corner: Bottom
Left
Chessboard: Each block within the
chessboard either
shrinks (In) or
expands (out)
In
Take Pressing causes the transition from preview to program
(SWAP or FOLLOW)
If the resolutions of Preview and Program are different, pressing the
TAKE button when in the Freeze mode, disables the Freeze mode
T-Bar
Optimization
On/Off
For optimal performance, set to ON when working with the
VP-747T presentation switcher control panel
When ON, the resolution of the PREVIEW output is always identical to
the PROGRAM output
Off
