VP-747 - Operating the VP-747 31
8.1.2 Preview and Program Input and Output Settings
Figure 13 defines the input Mode Setting:

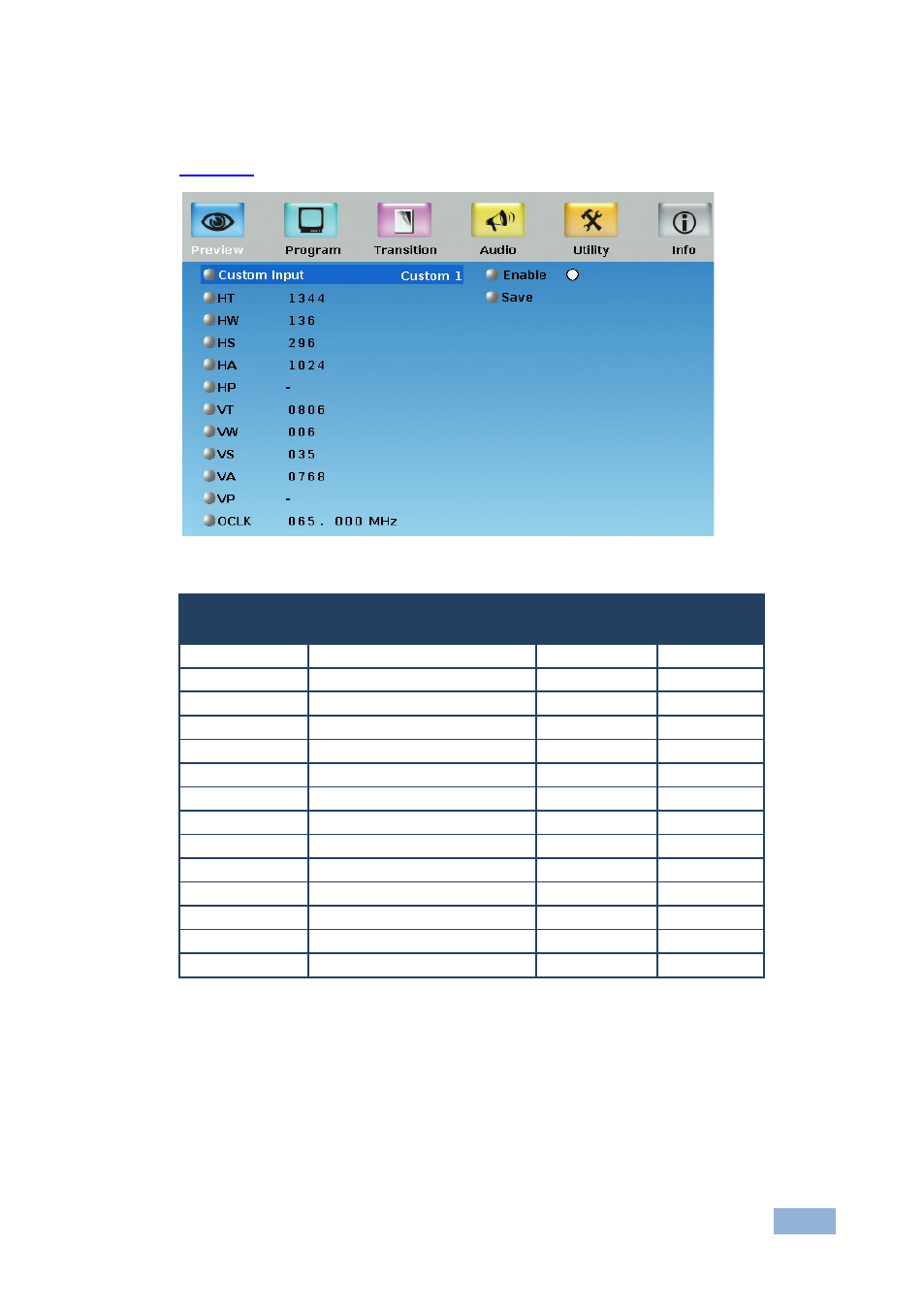

Figure 13: Input Mode Setting Screen
Input Mode Functions
Setting
Function Range Default
Custom Input Set custom values Custom 1 to 4
HT Horizontal Total 1344
HW Horizontal sync pulse width 136
HS Horizontal active start point 296
HA Horizontal active region 1024
HP Horizontal polarity
VT Vertical Total 806
VW Vertical sync pulse width 6
VS Vertical active start point 35
VA Vertical active region 768
VP Vertical polarity
OCLK Output clock 65
Enable off
Save Click to save settings N/A
