18 VP-747 - Connecting the VP-747 Control Ports

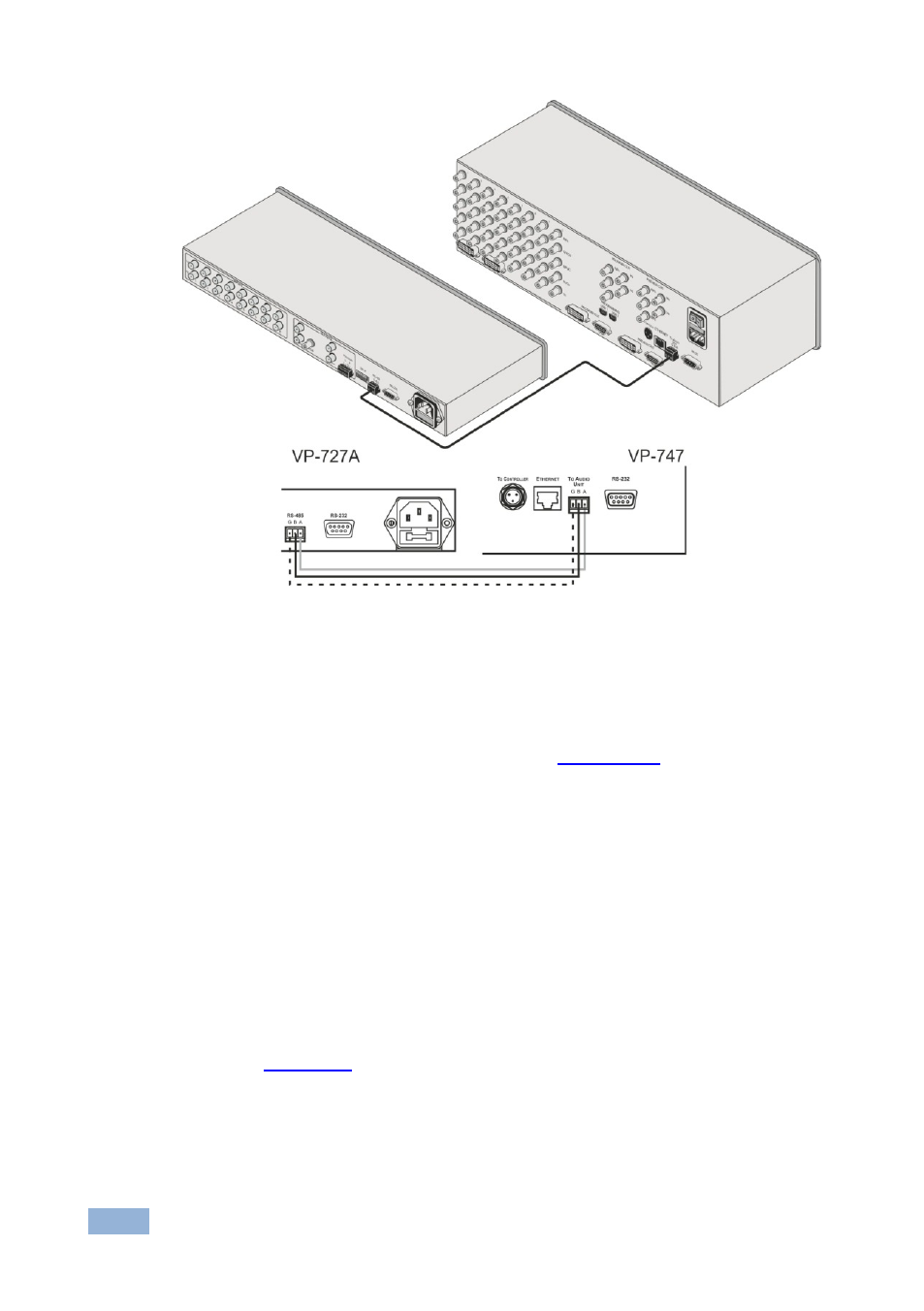

Figure 8: Connecting the VP-727A to the VP-747
6.3 Connecting the VP-747 to the Kramer VP-747T
For optimal operation of the VP-747 via the VP-747T, set the VP-747 “Optimize
T-Bar” mode in the “Transition” menu to on (see Section 8.1.3
Up to four VP-747 machines can be connected to the VP-747T Presentation
Switcher Control Panel.
).
You can connect the VP-747 to the VP-747T by:
• One-to-one connection, from the TO CONTROLLER mini XLR connector on
the
VP-747 to the TO VP-747 mini XLR connector on the VP-747T
• Wired connection, from the TO CONTROLLER mini XLR connector on the
VP-747 to the TO VP-747 3-pin terminal block connector on the VP-747T
(see
Section 6.3 )
