VP-747 - Connecting the VP-747 15
5.2 Connecting the Outputs
Figure 5 illustrates an example of the different connection types available for the
Preview and Program outputs:
For PROGRAM OUT, connect the:
• R/PR, G/Y, B/PB, (PR, Y, PB) BNC OUTPUT connectors to the YUV
acceptor, for example, a projector
• HDMI connector to a plasma display
• VGA a 15-pin HD computer graphics video connector to an analog display
• For PREVIEW OUT, connect the:
• HDMI connector to an LCD display
• VGA 15-pin HD computer graphics video connector to an analog display
• R/PR, G/Y, B/PB, HS and VS BNC OUTPUT connectors to a display

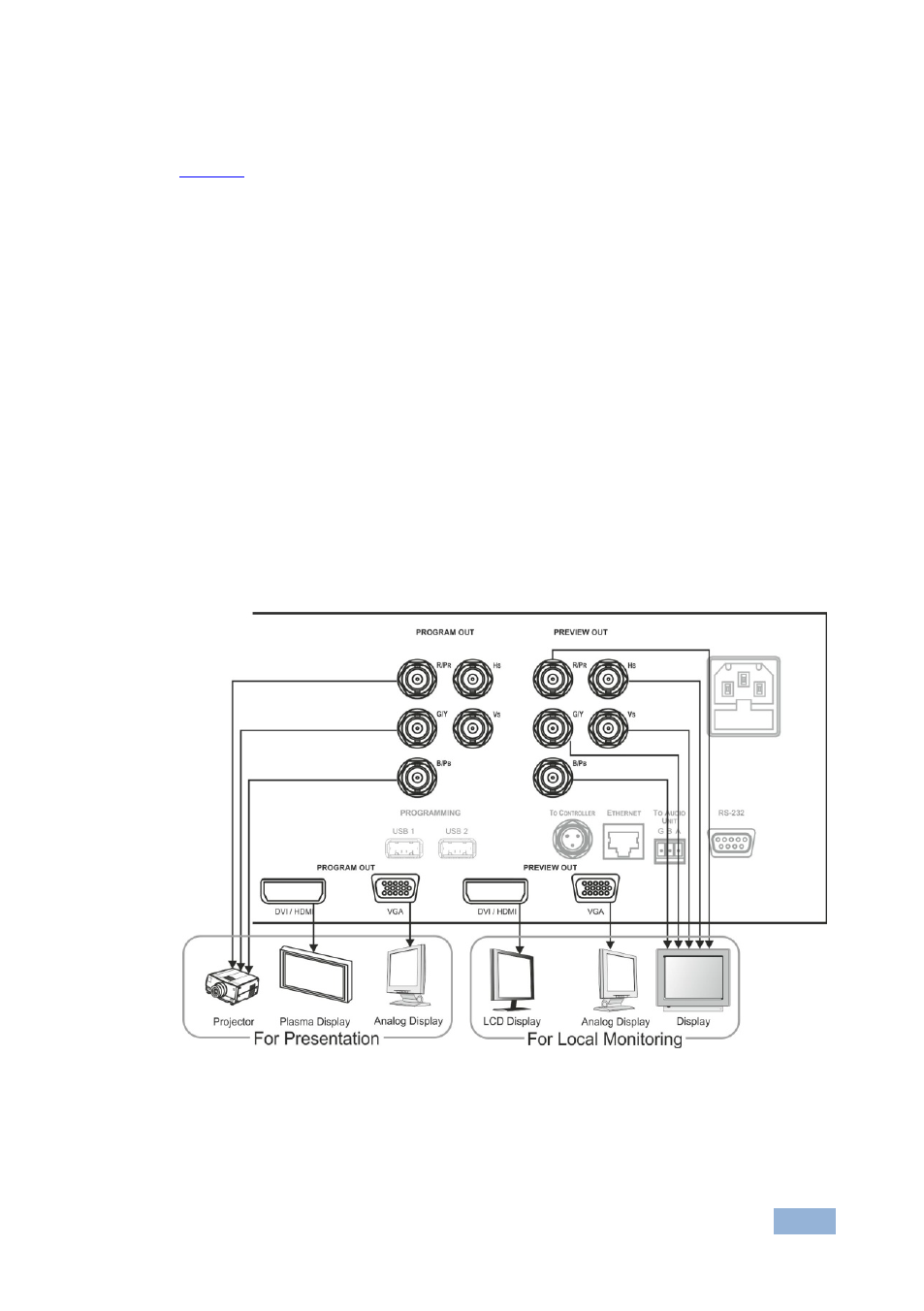

Figure 5: Connecting the PREVIEW OUT/PROGRAM OUT Connectors
