Bell & Gossett 10-001-275 XLS Integrated Pump Controller User Manual
Page 51
51
Appendix G – Quick Start Guide
This guide will provide a Technician the steps needed to start the Technoforce XLS station.
Prior to following this guide the station must be mechanically and electrically installed
and the system filled with water. All remote sensors, if applicable, should also be installed
and calibrated. Please refer to the Station Installation Document and Technician’s IOM for
detailed set up for the station.
Access
This is for operation at the Technician level. To log in follow the steps below:
1. On the controller touch screen tap the SERVICE key
2. From this menu tap the [Log on/off key], this is at the bottom right corner of the
screen.
3. Tap [Technician] and enter the password provided at the time of purchase. Tap
to log in, or
to exit without logging in.
4. Tap [OK]
5. Tap the BOOSTER key located at the very top of the screen to return to the main
display.

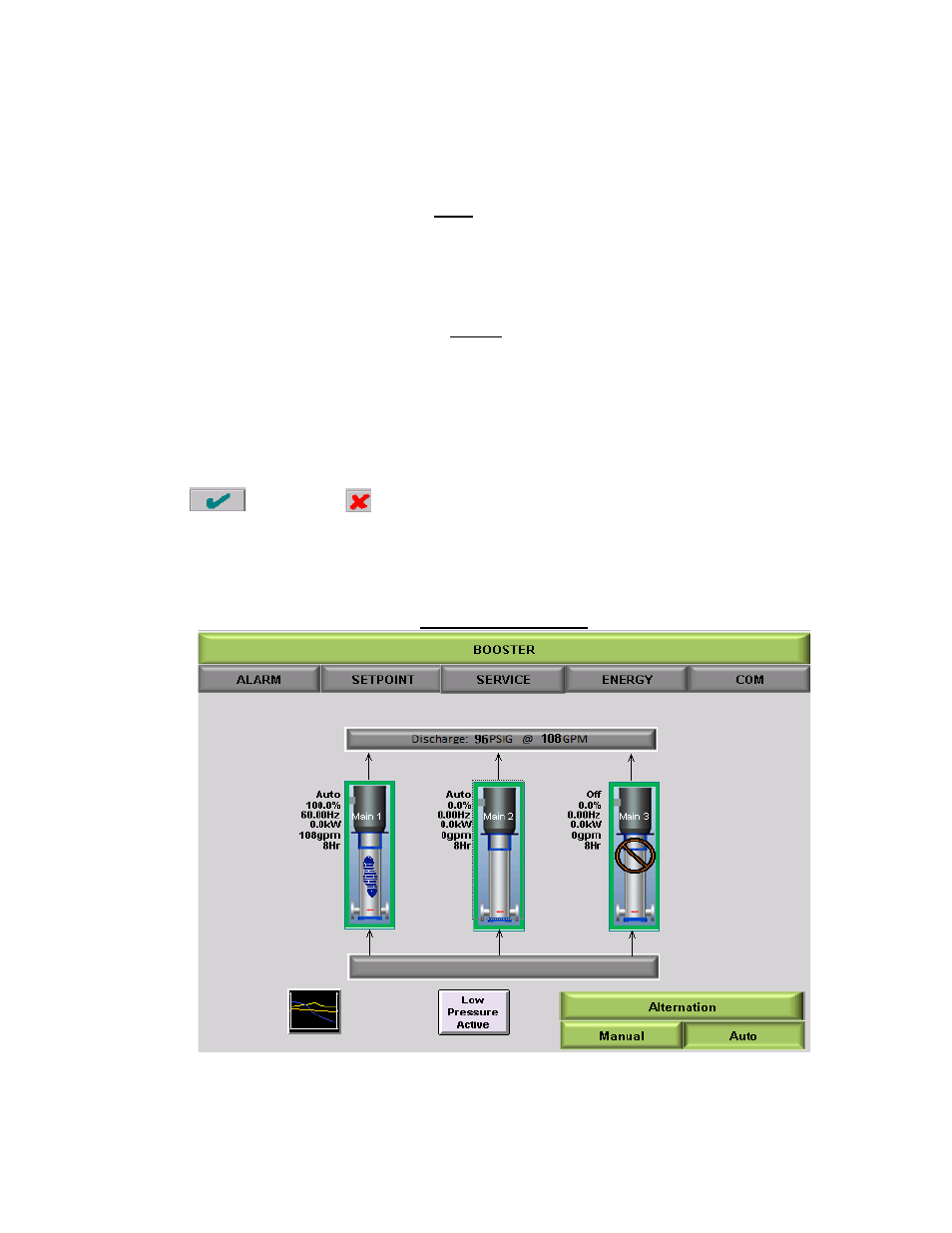

Booster Home Screen
