Bell & Gossett 10-001-275 XLS Integrated Pump Controller User Manual
Page 16
16

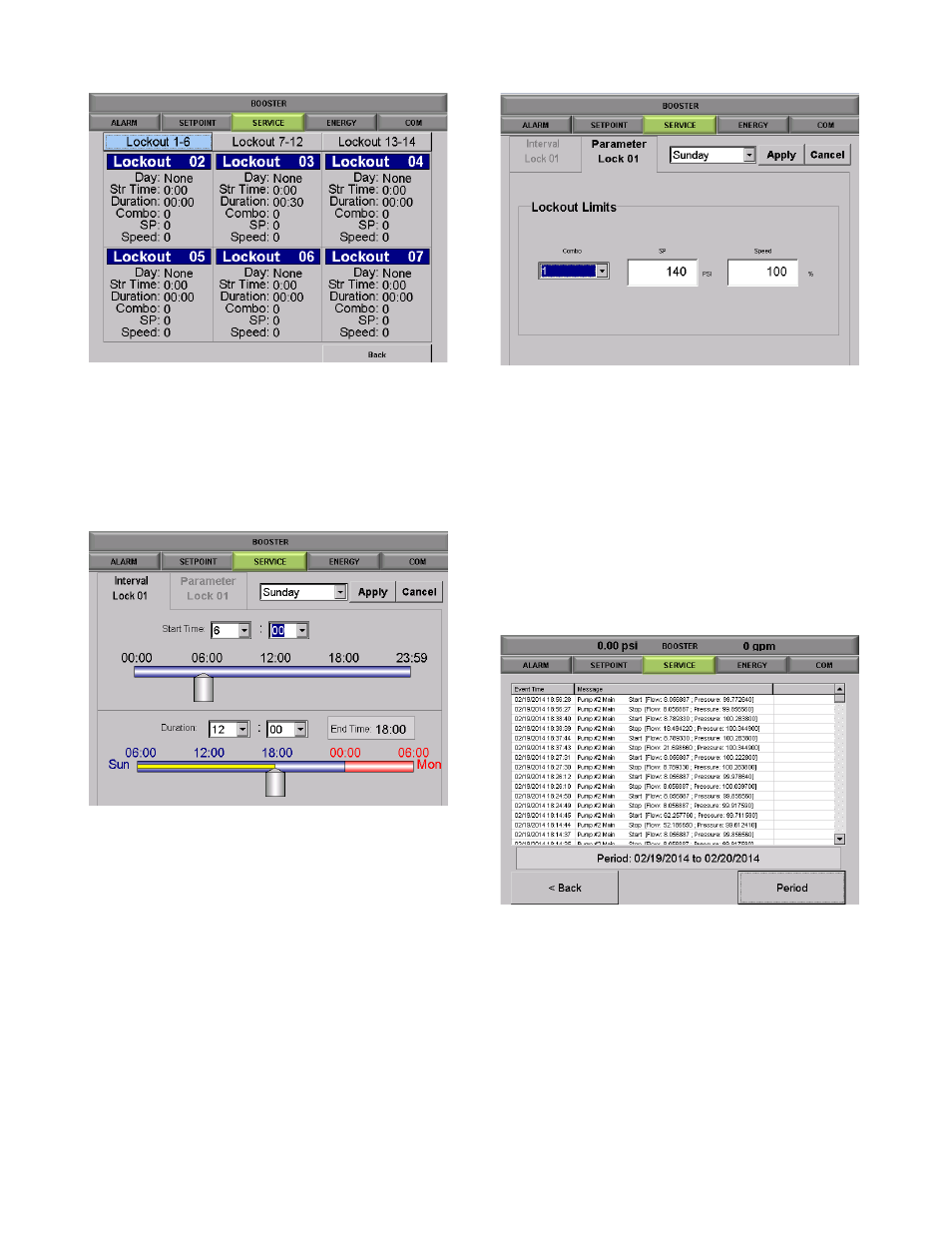

Figure 38: Lockout Screen
Individual lockouts may be setup by tapping over
each lockout inset. Tapping any inset opens a
configuration window. The day, start time, and
duration may be entered in the interval tab at the
top. In the parameter tab, the combo number,
setpoint, and speed can be entered. Tap [Apply]
to save settings or [Close] to discard any changes.
Figure 39: Individual Lockout Setup
The screen shown in Figure 39 sets up a lockout
for Sunday beginning at 6:00 AM. The duration is
set to be 12 hours. Thus this lockout will end at
6:00 PM on Sunday. The animated display gives
an indication about time.
Figure 40: Parameter Tab in Lockout
Setup
The Parameter tab enables a user to define Combo
number, maximum pressure, and maximum speed
in RPM
2. [Events]
By tapping [Events] you will be taken to the Events
home screen shown in Figure 41. This page will
detail any event that has happened within the given
period.
Figure 41: Event Setup
By tapping [Period] you will be able to adjust the
range to show only information required.
Tapping [< Back] will take you back to the Service
Home Screen.
