Tap [Next] to move to the next System Setup screen.
Basic Pump Information
The number of pumps can be selected from a drop
down menu. Note that this is set from the factory and
changing the number of pumps could render the station
inoperable if the selection does not match the actual
number of pumps.
The number of zones can also be set from the drop down
menu.
Each pump can be assigned a name in the editable
fields at the bottom of the screen.

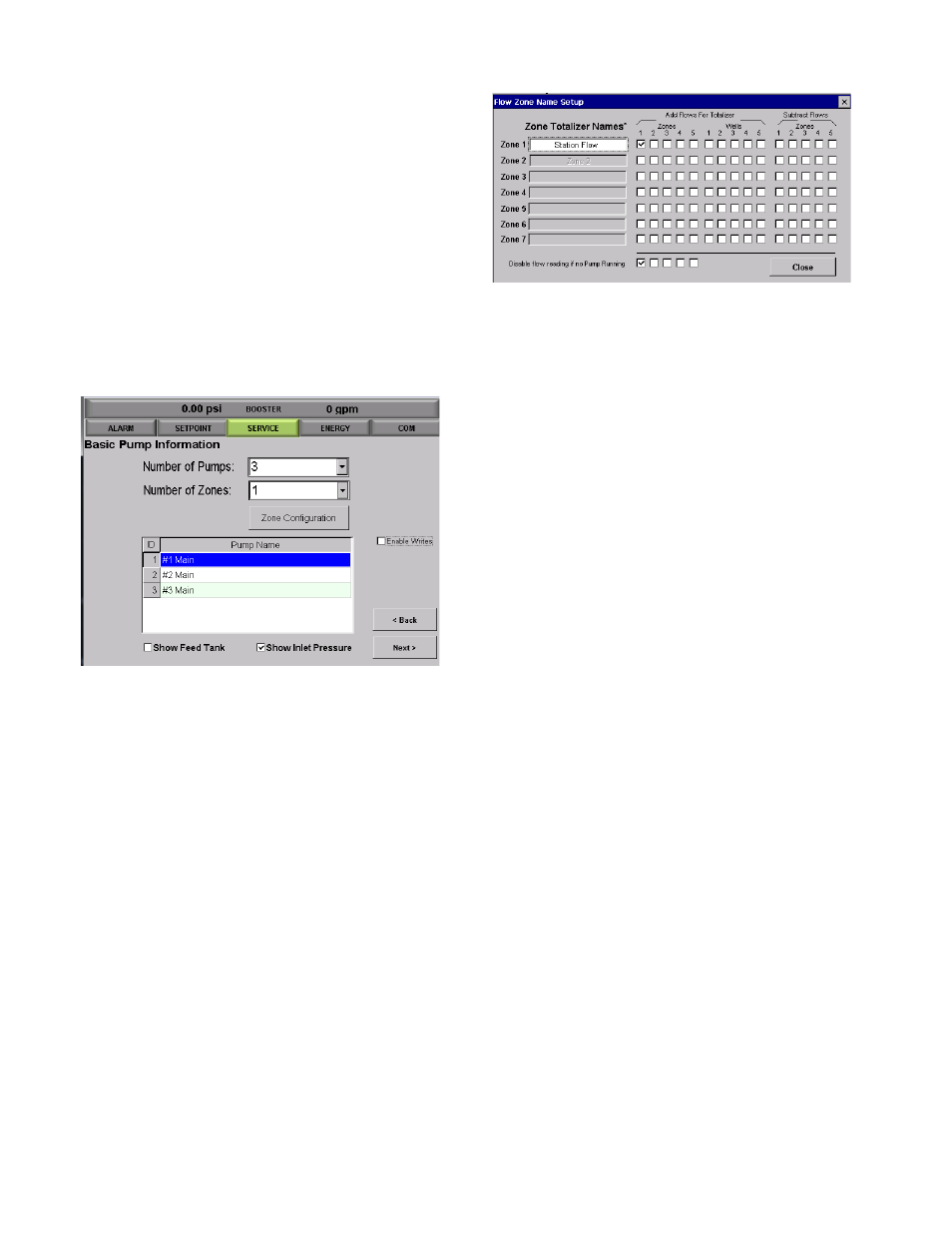

Figure 5 6 : Basic Pump Information
By selecting “Show Inlet Pressure” or “Show Feed
Tank”, those valves will be displayed on
theBooster Home Screen.
Zone Configuration
Tapping [Zone Configuration] will allow you to
configure the zones for the system.
The number of flow zones is adjusted here. Up
to 7 zones can be selected. This controls how
many flow totalizers are operable. Each flow
zone will keep track of water usage by day,
week, month and year (5 years).
Figure 5 7 : Zone Totalizer Setup
The name of the flow zone is set here. Also, the
flow channel that is totalized for each zone is
configured here. These channels match the flow
channels from calibration. In addition to picking a
single channel for a particular zone, multiple
channels can be added together to form a single
flow zone by selecting more than one “Zone” to
totalize. Flow zones can also be subtracted from the
total by selecting a “Subtract Flows” channel. This
may be required when a meter reads flows going to
more than one zone, and one of these subsequent
zones is metered separately.
Flow filtering is setup here as well. By selecting
“Disable Flow Reading if No Pump Running” for a
channel, that flow reading will be zero’d out when no
pump is running. This is in case the system picks up
fluctuations that cause the meter to generate
undesirable small flows when the pumps are not
running.
Tap [Close] to save.
Tap [Next] to move to the next screen.
Pump Configuration
This section will allow you to configure the pumps for the
system. Please note that the Booster station is pre-
configured at the factory. Any changes could be
detrimental to the station.
