Bell & Gossett 10-001-275 XLS Integrated Pump Controller User Manual
Page 28
28

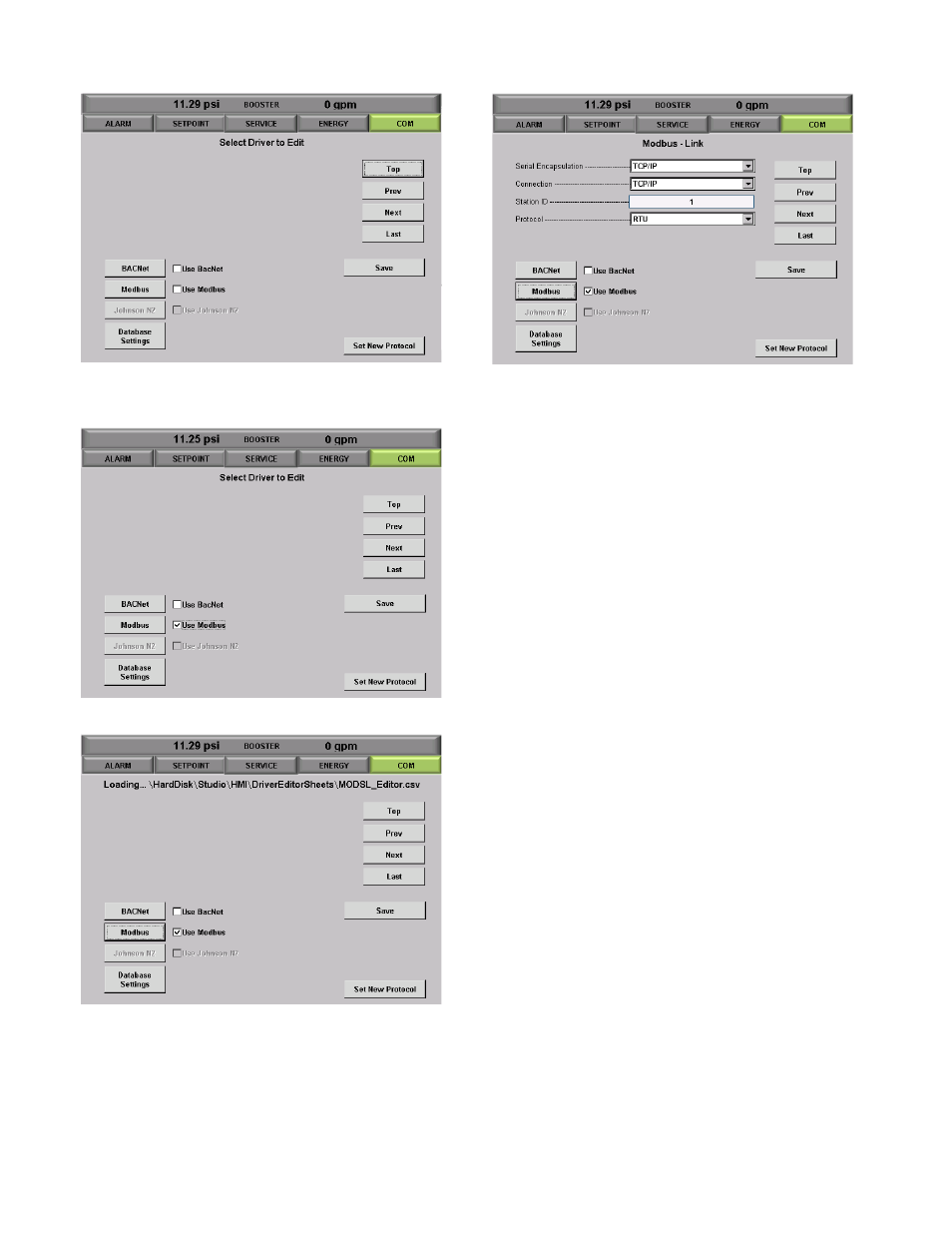

Figure 6 8 : COM Home Screen
Figure 6 9 : COM Protocol Selection
Figure 7 0 : COM Protocol Selection
Figure 7 1 : COM Protocol Selection
Protocol settings are then available for editing. Use the
Top, Prev, Next and Last buttons to navigate among the
pages of the properties for the protocol selected. Press
Save for each page as changes are made. Once all the
changes are made, press “Set New Protocol”. The HMI
will reboot to make the required changes. The station
will still operate during this process, but the HMI will not
show pressure/flow etc., remote connection will be lost
etc. However there will be no loss of pump operation.
