7/8" wrench, See Drawings p. 126-
128.

Tools Required

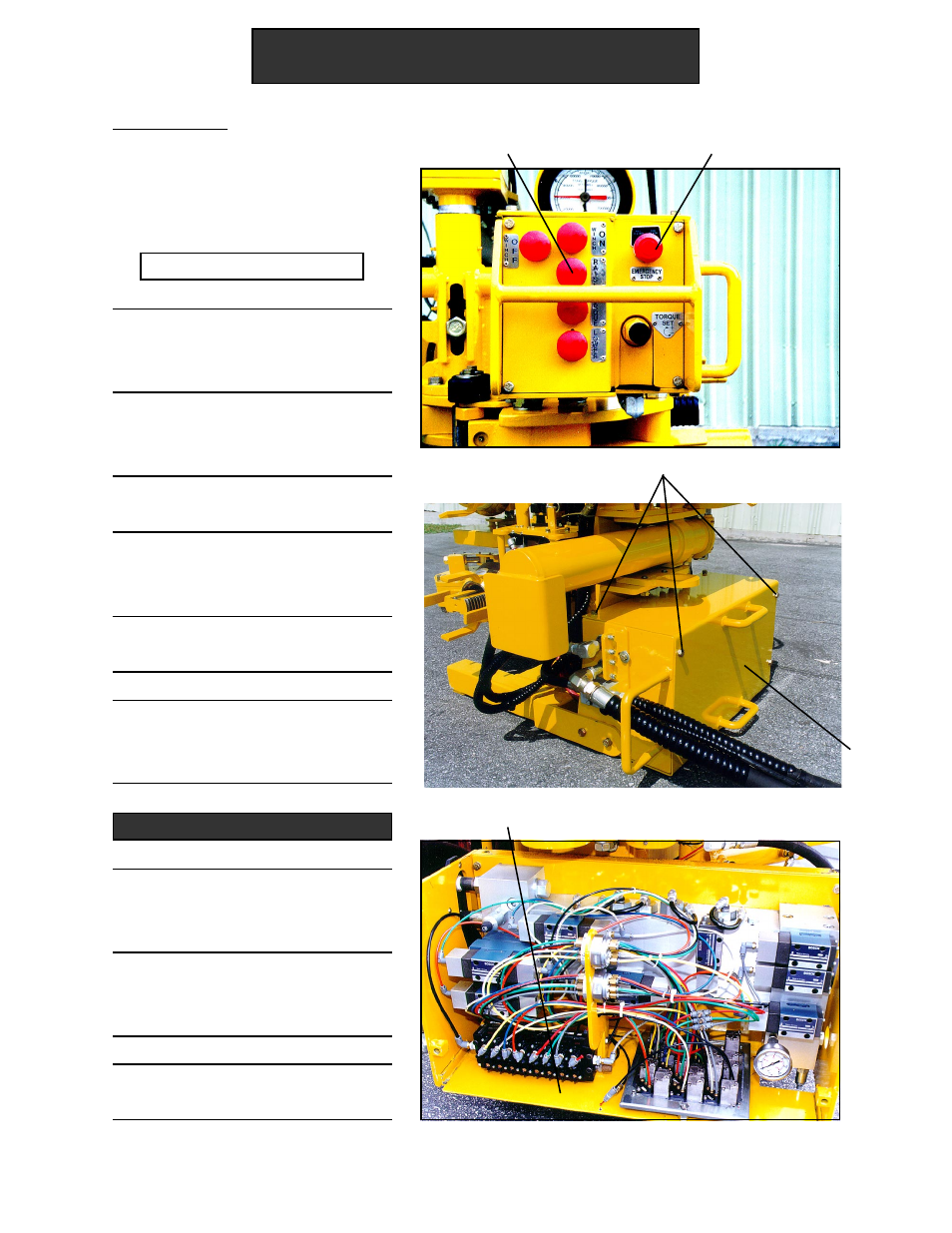

Accessing the Air Logic System and Main Hydraulic Block

E

R

T

66

Maintenance & Repair

Initial Steps

1. Make sure the HawkJaw is off

the drill pipe connection and in
the rest position on the derrick.

2. Use Raise (R) to raise the

HawkJaw 3"-5" inches off the
derrick floor.

3. Shut down the Hydraulic

power unit.

3. Press the Grip button

repeatedly to bleed hydraulic
pressure.

4. Disconnect the Air power

supply.

5. Push in the "E" stop (E).
6. Assume that there is still a load

on every actuator. Proceed with
caution.

Air Logic System and Main Block

1. Use the 7/8" wrench to remove

the Main Block Housing Cover
Plate Bolts
(B) on each side.

2. Remove the Main Block

Housing Cover Plate (CP) to
expose the Air Logic Tray (T).

3. Slide out the Air Logic Tray (T).
4. Set the Air Logic Tray (T) on the

rig floor.

B

CP
