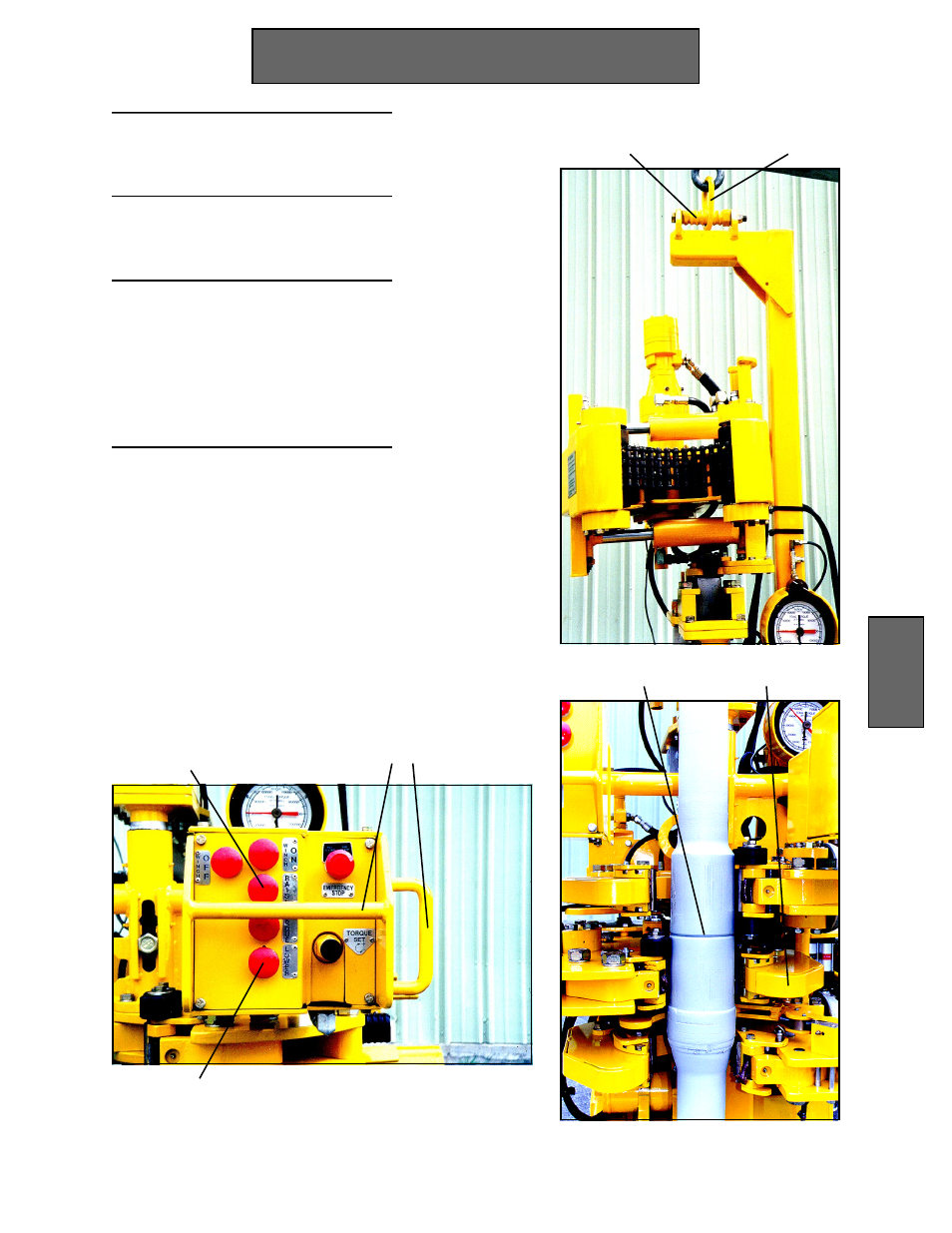

Winch Hook - Up (cont.)

Installation

15

Installation

7. Center the Suspension Ring

(SR) on the Lateral tilt screw
(LTS).

8. Use Raise (R) to raise the

HawkJaw 1'- 2' ft. off the rig
floor.

9. Use the Control Handles (CH)

on both Control Panels and Raise
(R) and Lower (L) to position
the HawkJaw middle wrench
(MW) near the drill pipe
shoulder
(S) location.

LTS

L

S

MW

Continued on next page.

CH

R

SR
