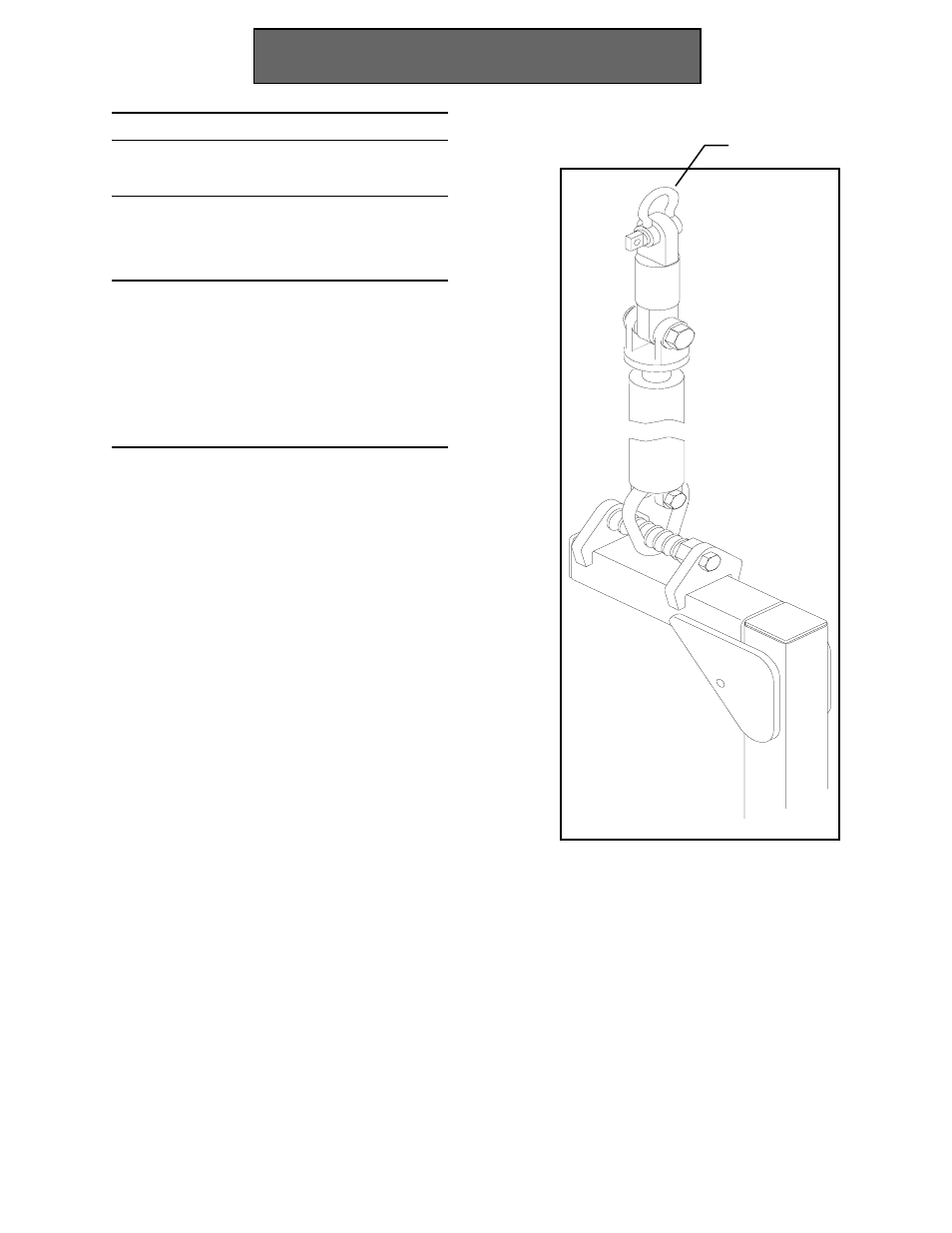

1. 5/8" diameter steel cable.
2. Appropriate hanging cable hardware

for 5/8" diameter steel cable.

3. Enough cable length to suspend the

Hanger Eye (HE) 20' ft. above the rig
floor.

4. Enough cable length to allow the

HawkJaw to rest on the rig floor 3'- 5' ft.
away from the rotary table with the lift
cylinder completely stroked out. The lift
cylinder is 13' ft. long when completely
stroked out.

Hanging Cable Requirements

Installation
