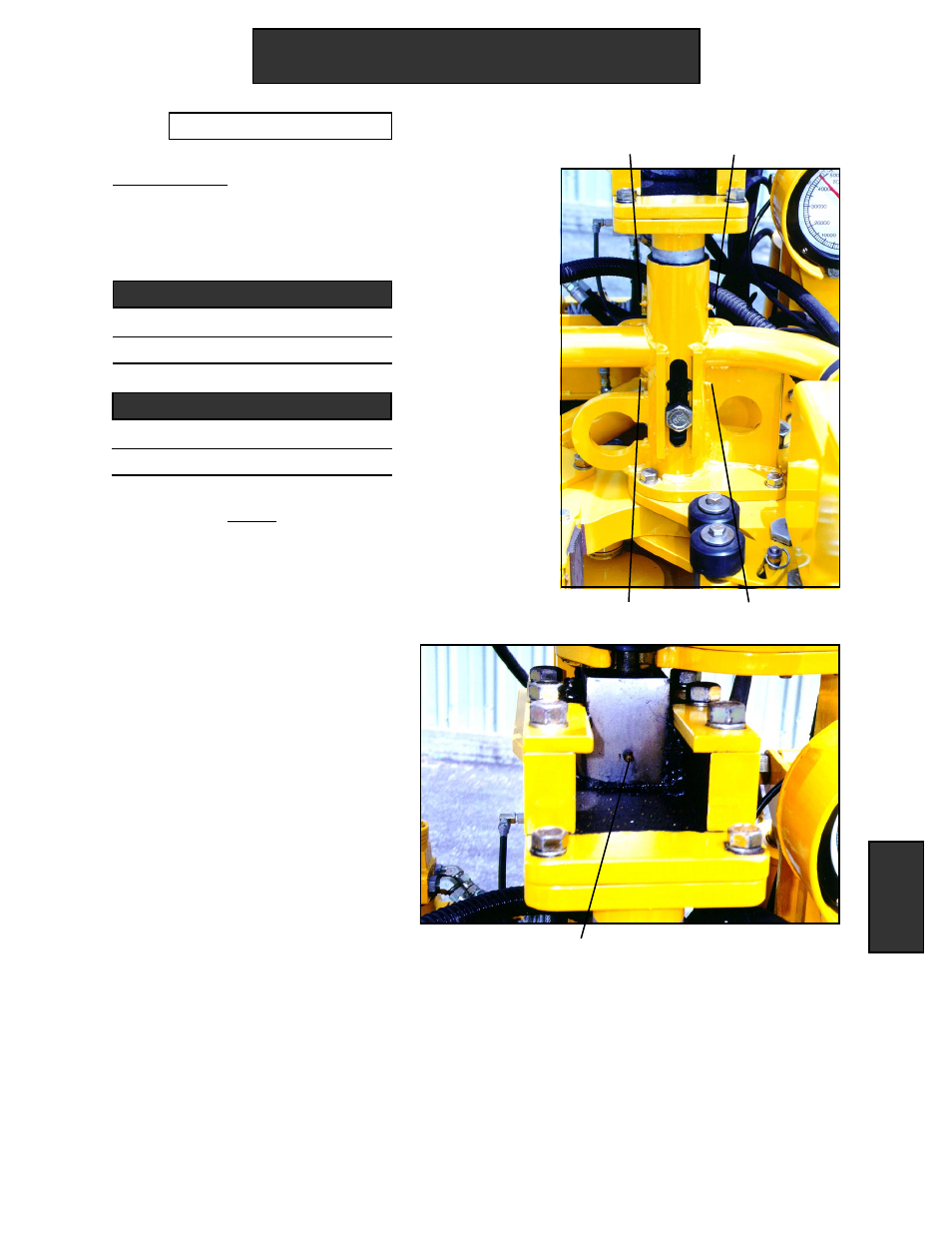

Spinner Mount Sliding Tube

1. Pump grease fittings ST1-ST4.

Tools Required

Grease gun

Grease Once per Month

Spinner Maintenance

Maintenance & Repair

47

Maintenance

& Repair

Spinner Mount Sliding Block

1. Pump grease fittings SB1.

ST3

ST4

ST2

ST1

SB1

NOTE

Consistent lubrication of the Spinner
sliding tube and block increases
performance and component life.
