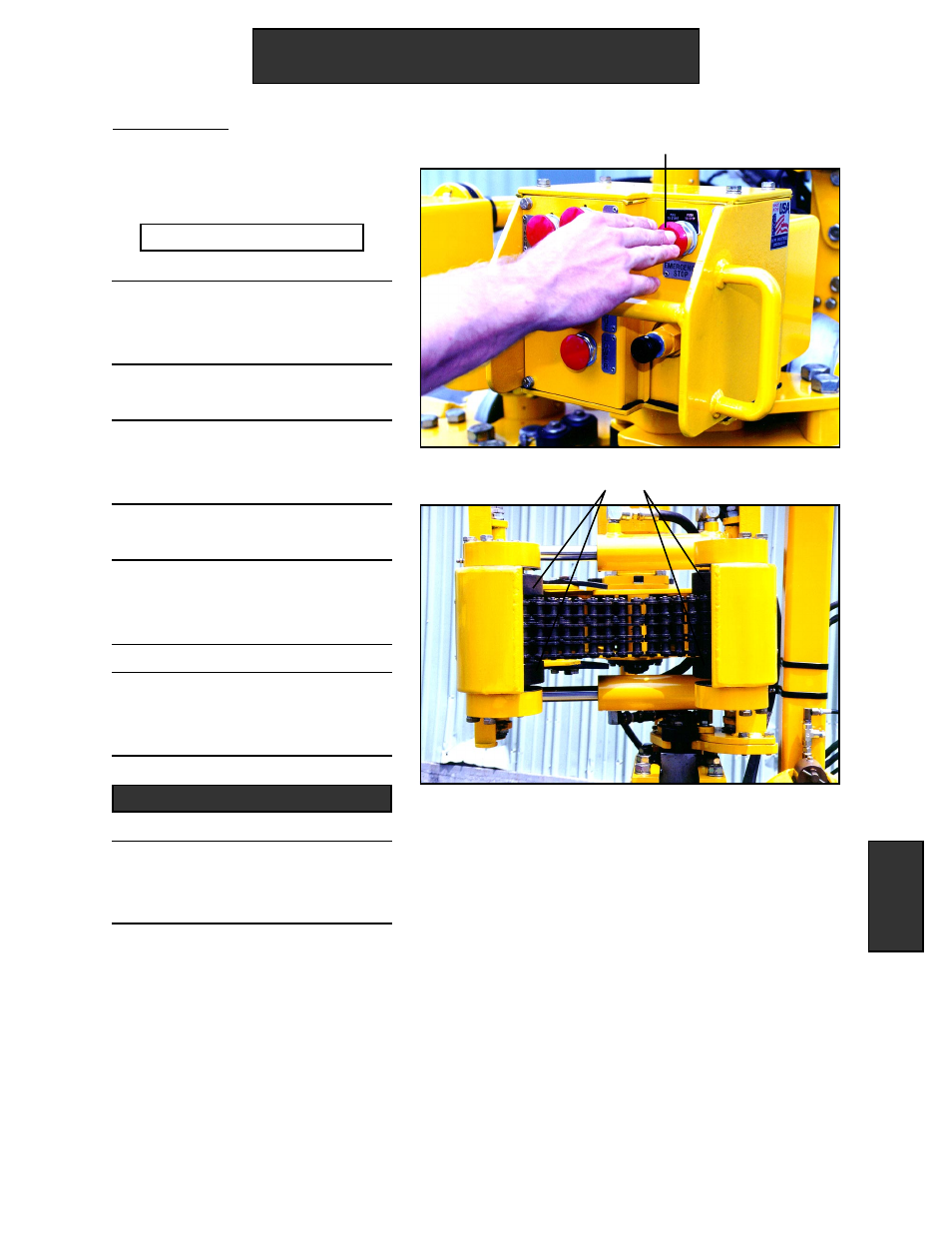

Changing the Drive Rollers

Tools Required

Initial Steps

3/4" wrench

1. Make sure the HawkJaw is off

the drill pipe connection and in
the rest position on the derrick.

2. Shut down the Hydraulic

power unit.

3. Press the Grip button

repeatedly to bleed hydraulic
pressure.

4. Disconnect the Air power

supply.

5. Press the Grip button

repeatedly to bleed hydraulic
pressure.

6. Push in the "E" stop (E).
7. Assume that there is still a load

on every actuator. Proceed with
caution.

1. Make sure the Drive Roller

Groove is no longer visible on
the Drive Rollers (DR).

Drive Rollers

Continued on next page.

DR

E

Maintenance

& Repair

Maintenance & Repair

51
