Changing the Spinner Chain (cont.)

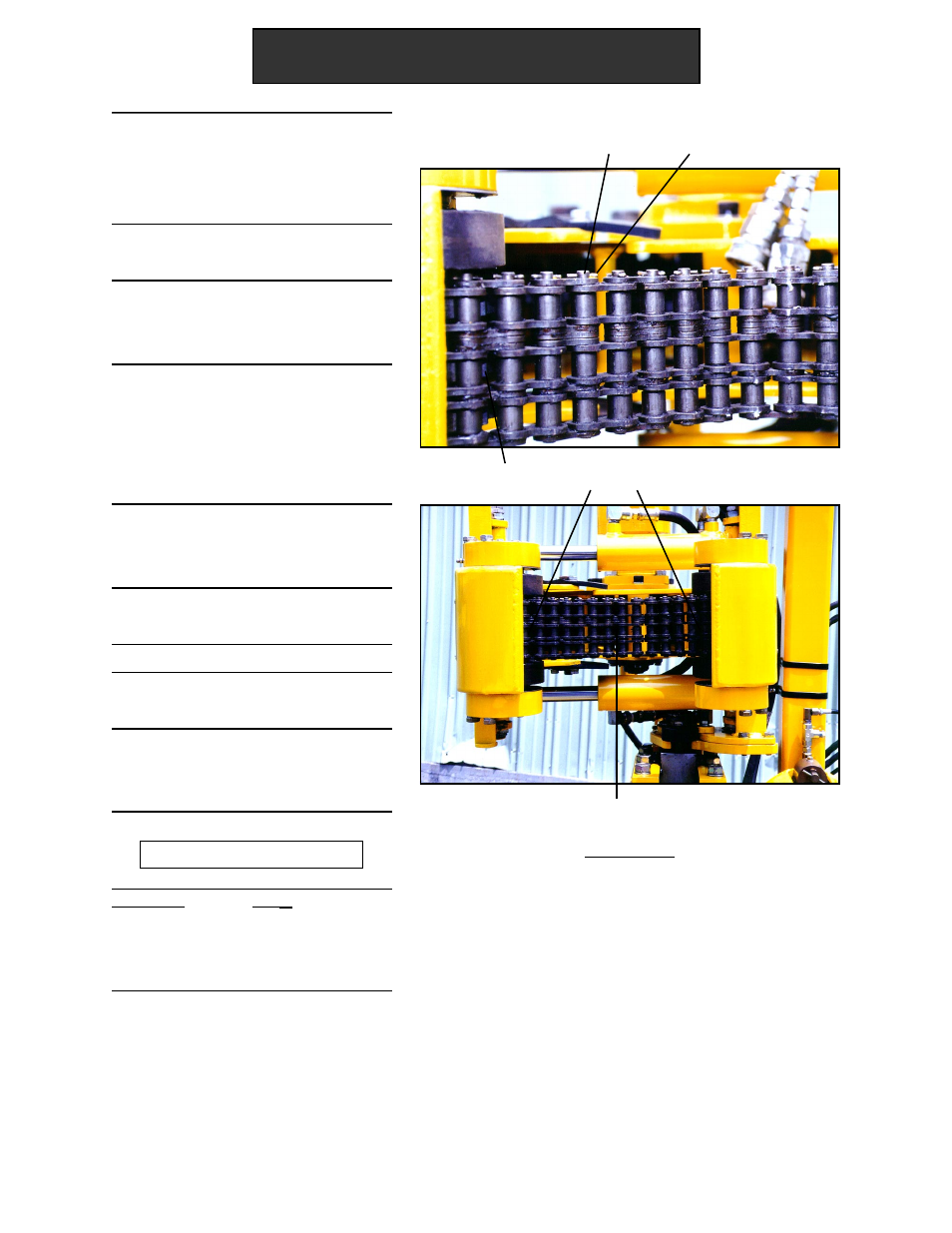

6. From the front of the unit, use the
Needle-nose pliers to remove the
Cotter pins (CP) in one of the
Chain links.
7. Use the hammer to remove the
Chain link pin (CLP).
8. Pull out the old chain. Make
sure the chain does not catch on
the Drive Sprocket (DS).
9. Feed the chain into the spinner
behind the Drive Sprocket (DS)
until both ends of the new chain
meet at the Drive roller sprockets
(DRS).
10. Feed the ends of the chain
around the outside of the Drive
roller sprockets (DRS).
11. Place the ends of the new chain
together.
12. Insert the Master Link.
13. Place the End Cap on the
Master Link.
14. Use the Needle-nose pliers to
insert the Master Link Cotter
Pins.
CP
DRS
Part Numbers
Part Name Part #
Chain 031-25CHAIN
Chain Repair Kit 031-24CHAIN-RK
WARNING
Running a new chain with worn
Drive Rollers severely shortens
chain life. If the Drive Roller
Groove is no longer visible, replace
the Drive Roller. See p. 51.
DS
DRS
50 Maintenance & Repair
CLP
