Changing the Hook Dies
Tools Required
3/4" wrench, See Drawings p. 98, 100.
1. Make sure the HawkJaw is off
the drill pipe connection and in
the rest position on the derrick.
2. Shut down the Hydraulic power
unit.
3. Press the Grip button
repeatedly to bleed hydraulic
pressure.
4. Disconnect the Air power
supply.
5. Push in the "E" stop.
6. Assume that there is still a load
on every actuator. Proceed with
caution.
Initial Steps
Maintenance & Repair 37
Maintenance
& Repair
DH D

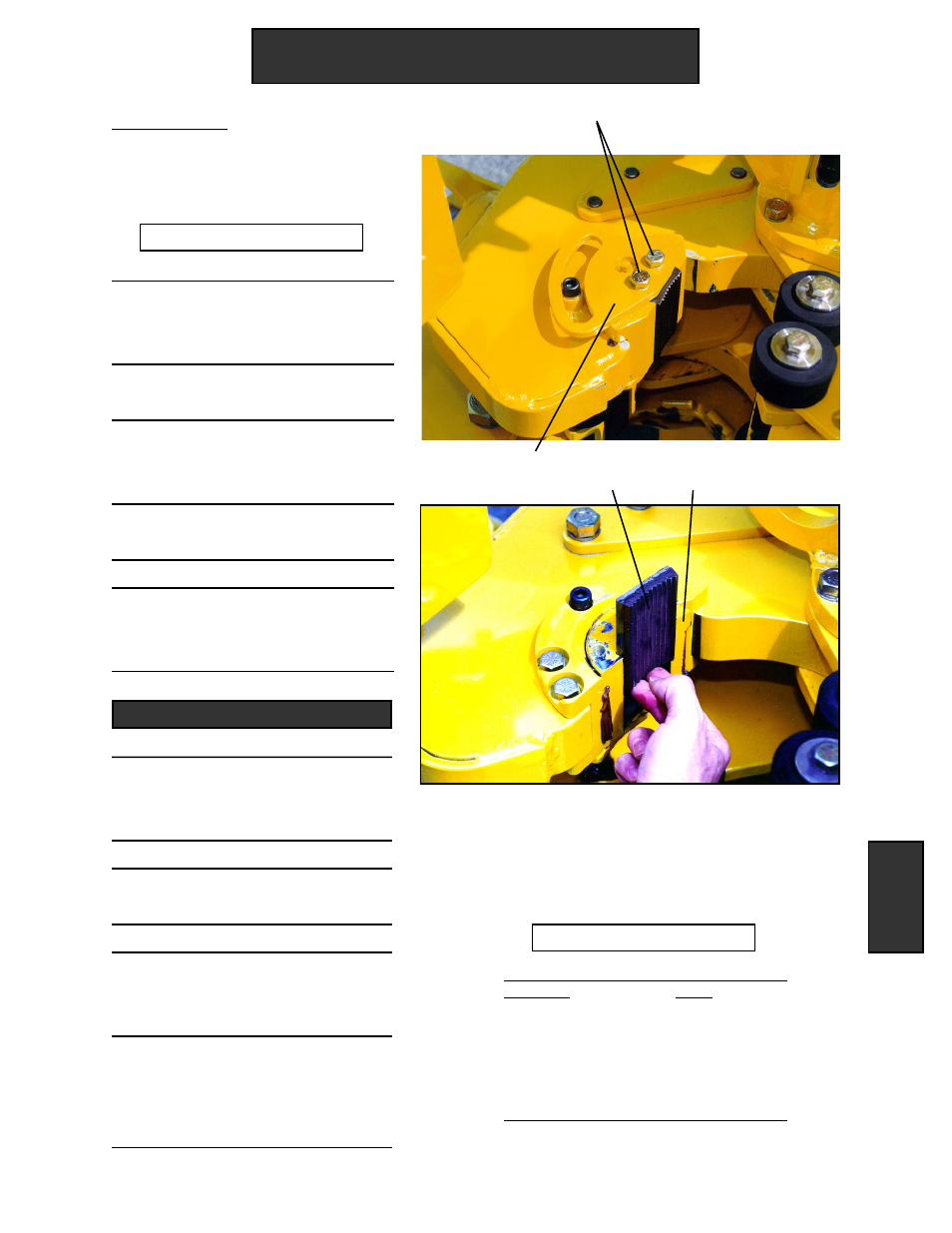

1. Use the 3/4" wrench to remove
the Die Holder Bolts (B).
Remove the Die Retainer (DR).
2. Slide out the worn Die (D).
3. Make sure the back and sides of
the new Die are clean.
4. Grease the back of the new Die.
5. Insert the new Die into the Die
Holder (DH) with the teeth of
the Die facing out.
6. Replace the Die Retainer (DR).
Use the 3/4" wrench to replace
the Die Holder Bolts (B) and
Lock Washers.
Hook Dies
Part Numbers
DR
B
Part Name Part #
Die (D) 061-20194
Die Holder Bolt (B) 999- 806245
Spirol Lock Washer 999-810703
Die Holder (DH) 061-20192B
