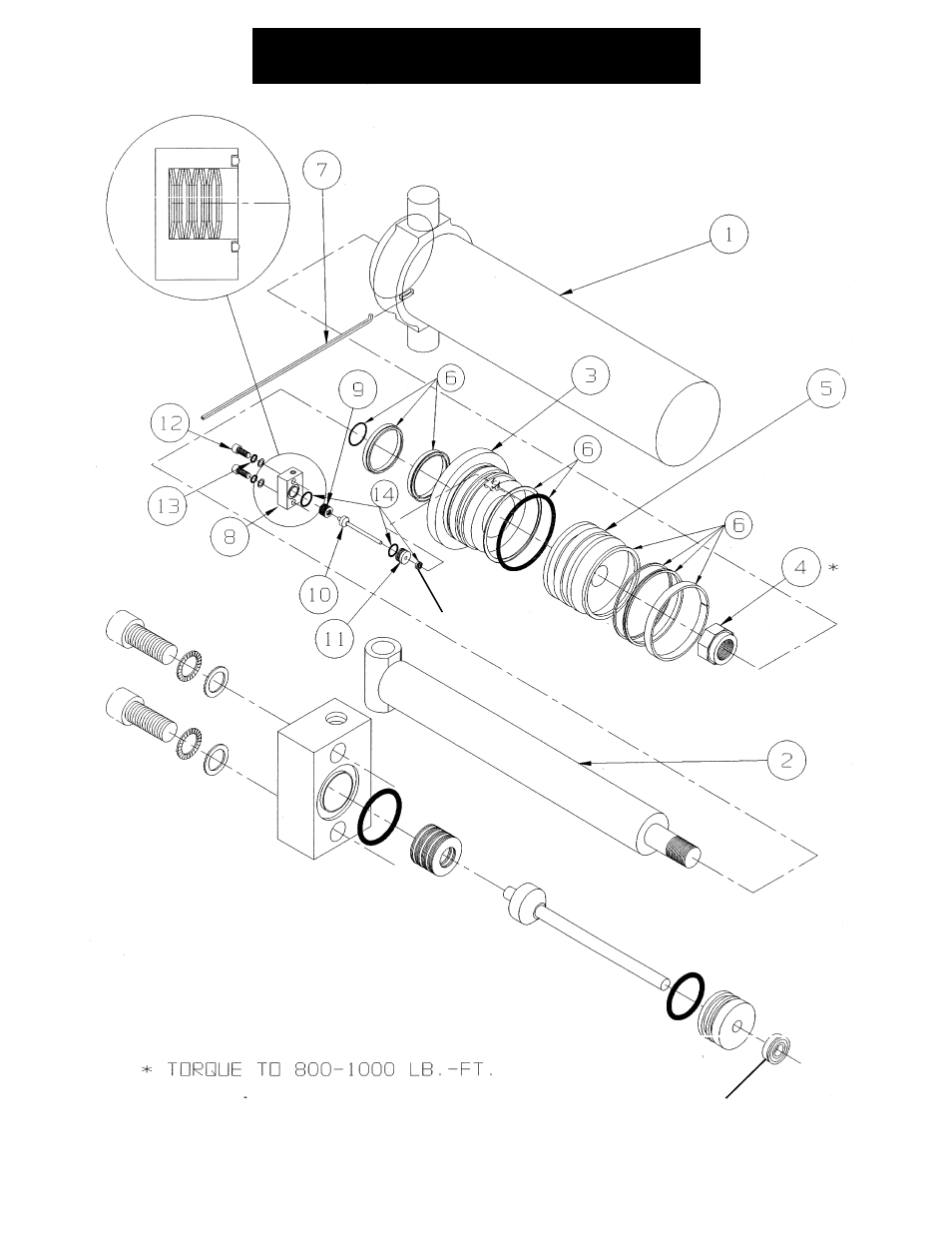

Torque Cylinder

106 Drawings

20tqcyl3

10/97

Install "U" cup with
top of "U" facing into
cylinder.

Install "U" cup with
top of "U" facing into
cylinder.

Install 14ea. bellville
springs as shown.
