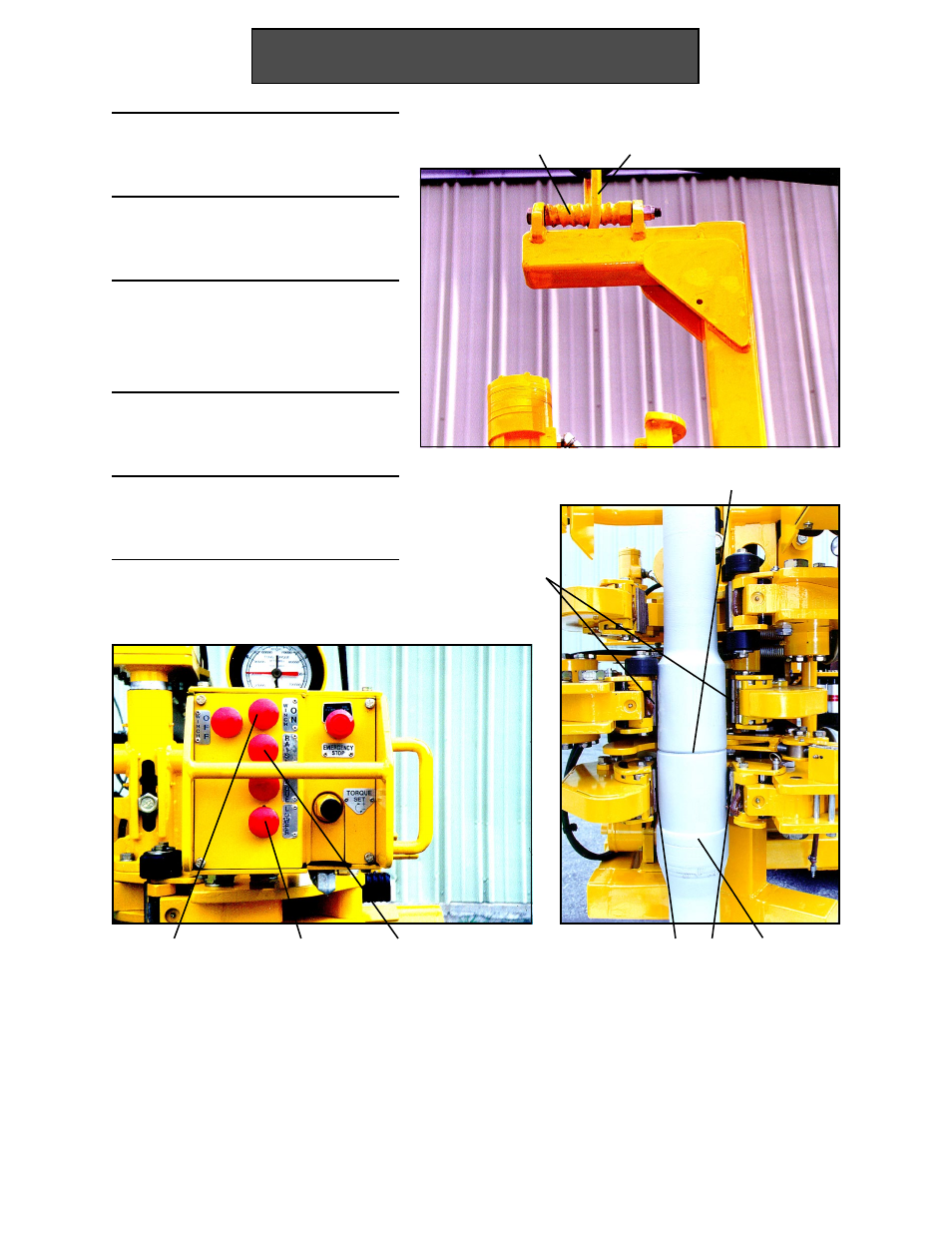

Position for Break Out

1. Center the Suspension Ring

(SR) on the Lateral tilt screw
(LTS).

2. Push and hold down Winch On

(WOn) to move the HawkJaw
onto
the drill pipe connection.

3. Use Raise (R) and Lower (L) to

center the Middle wrench dies
(MD) and the Bottom wrench dies
(BD) between the shoulder (S).

4. Keep the Bottom wrench dies

(BD) away from the Hard
banding
(HB).

5. Keep the Middle wrench dies

(MD) and Bottom wrench dies
(BD) away from the shoulder (S).

Continued on next page.
