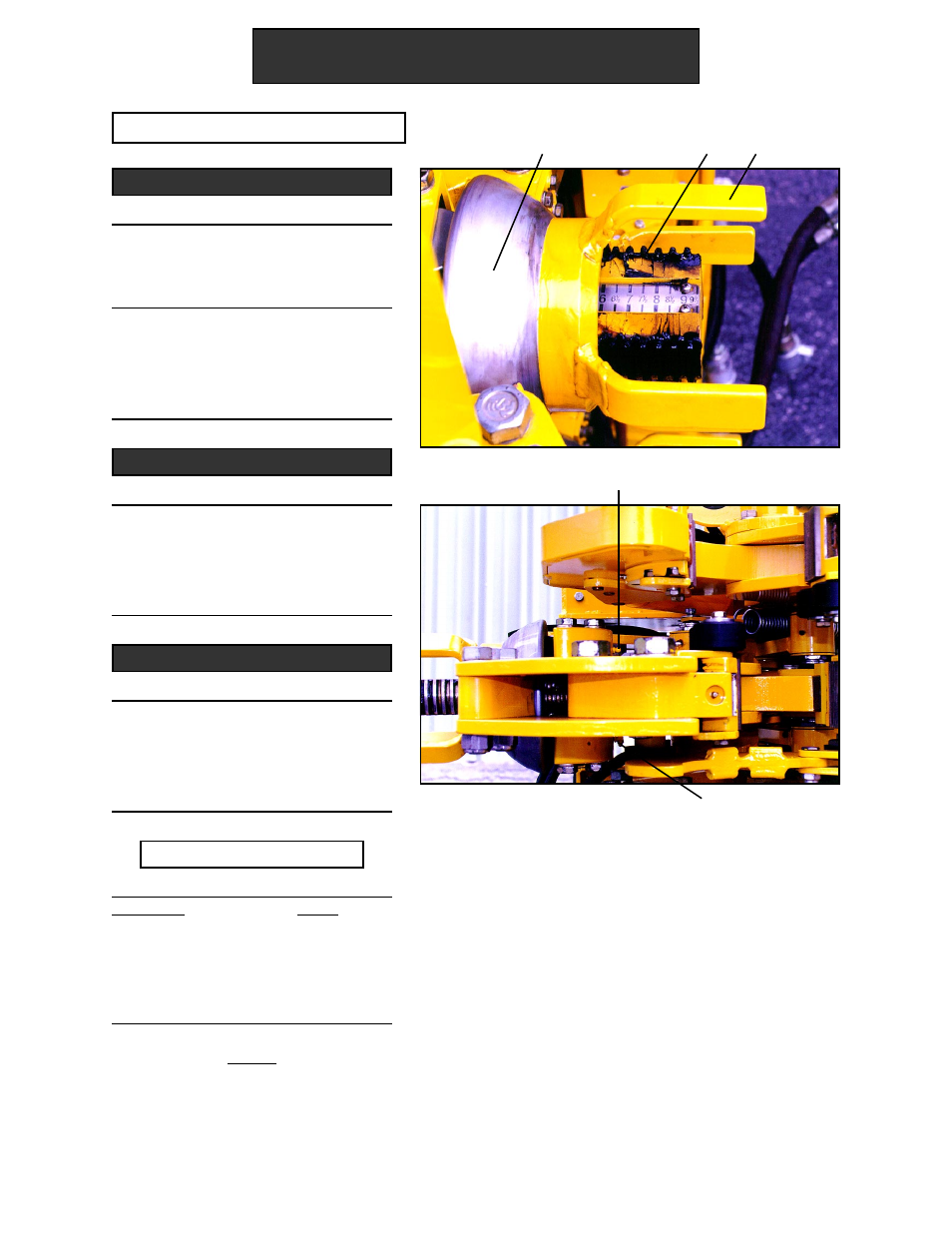

Wrench Maintenance

1. Surface grease the hook thread

(T) on the top wrench, middle
wrench, and bottom wrench.

2. Rotate the wrench nut (N) on

the top wrench, middle wrench,
and bottom wrench to spread
grease on the full thread area.

Wrench Hook

T

N

NS

Wrench Nut

1. Surface grease the wrench nut

surface (NS) on the top wrench,
middle wrench, and bottom
wrench.

Hook Pivot Bearing Cap

1. Pump the Hook pivot bearing

cap grease fittings (H1-H2) on
the top and bottom of each
wrench.

32

Maintenance & Repair

H2

H1

Part Name

Part #

Straight Grease Fitting

016-1103K1

45° Grease Fitting

016-1103K2

90° Grease Fitting

016-1103K3

Part Numbers

NOTE

Consistent lubrication of the
wrenches increases performance and
component life.

Grease Once per Week, Minimum
