Changing the Grip Cylinders (cont.)
60 Maintenance & Repair
Part Name Part #
Grip Cylinder Cap Bolt (CB) 999-806628
Flex Lock Nut
999-806594-500
Grip Cylinder Rod Bolt (RB) 061-20270
Cotter Pin 061-98401A446
Lock Washers 061-91074A038
Grip Cylinder (C) 061-H18
Part Numbers
3. Use the Two 1 1/2" wrenches to
remove the Grip Cylinder Cap
side Bolt (CB) and Flex Lock
Nut.
4. Use the 1 1/2" wrench to remove
the Grip Cylinder Rod side Bolt
(RB).
5. Slide out the Grip Cylinder (C).
6. Place the new Grip Cylinder
into the Cap side Eye (CE) and
Rod side Eye (RE).
7. Use the Two 1 1/2" wrenches to
replace the Grip Cylinder Cap
side Bolt (CB) and Flex Lock
Nut.
8. Replace the Grip Cylinder Rod
side Bolt (RB). Assemble with
cotter pin.
9. Use the Two 11/16" wrenches to
connect the Cap side Hose (CH).
10. Use the Two 11/16" wrenches to
connect the Rod side Hose
(RH).

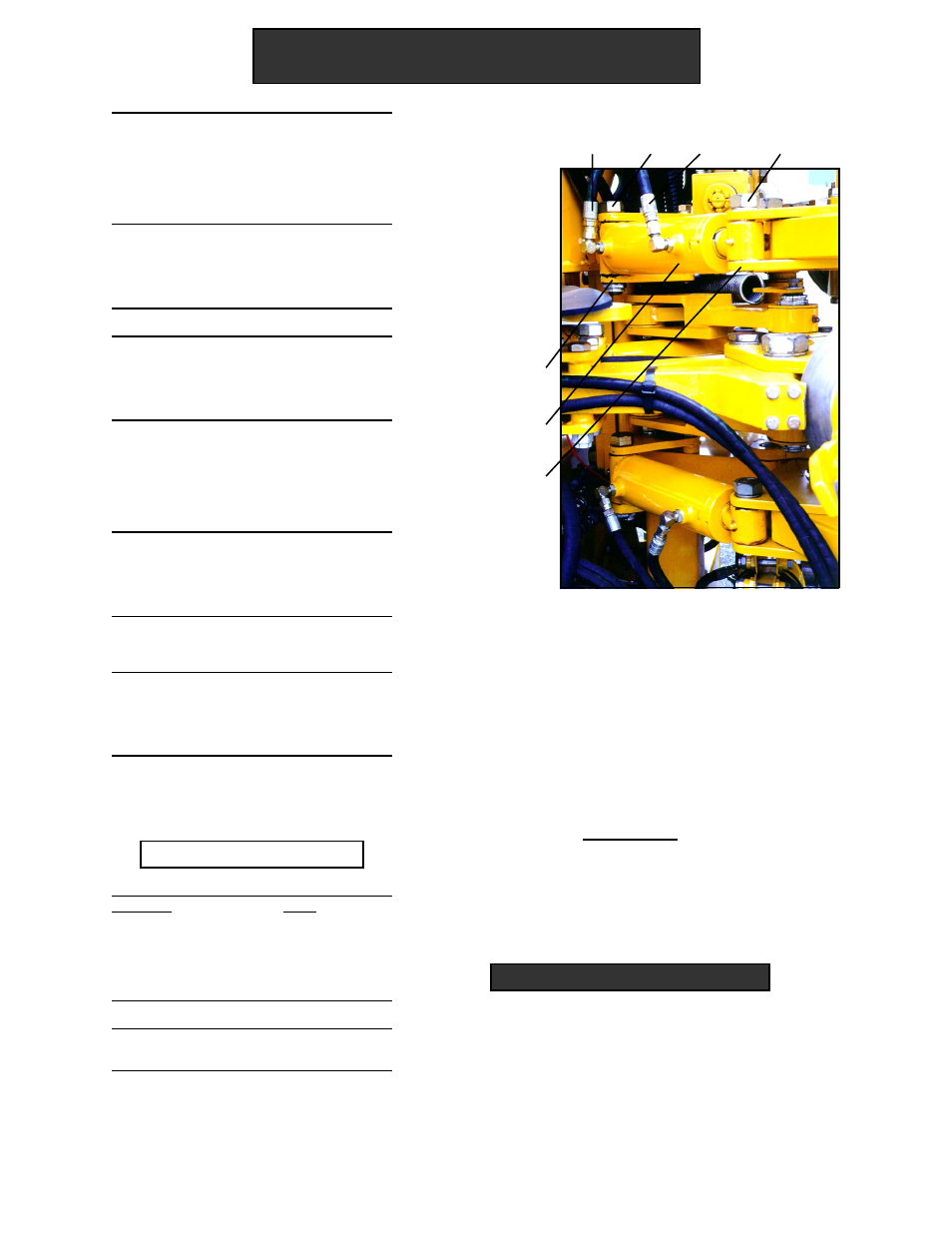

CH CB RH RB
RE
CE
C
Grip Cylinder Seals
1. See Drawings, p. 108.
WARNING
Make sure the Grip Cylinder Rod
and Cap side Hoses are properly
connected. See Drawings, p. 124.
