Wrench Maintenance
Tools Required
1. Make sure the HawkJaw is off
the drill pipe connection and in
the rest position on the derrick.
2. Shut down the Hydraulic
power unit.
3. Press the Grip button
repeatedly to bleed hydraulic
pressure.
4. Disconnect the Air power
supply.
5. Push in the "E" stop.
6. Assume that there is still a load
on every actuator. Proceed with
caution.
Initial Steps
Grease gun
34 Maintenance & Repair

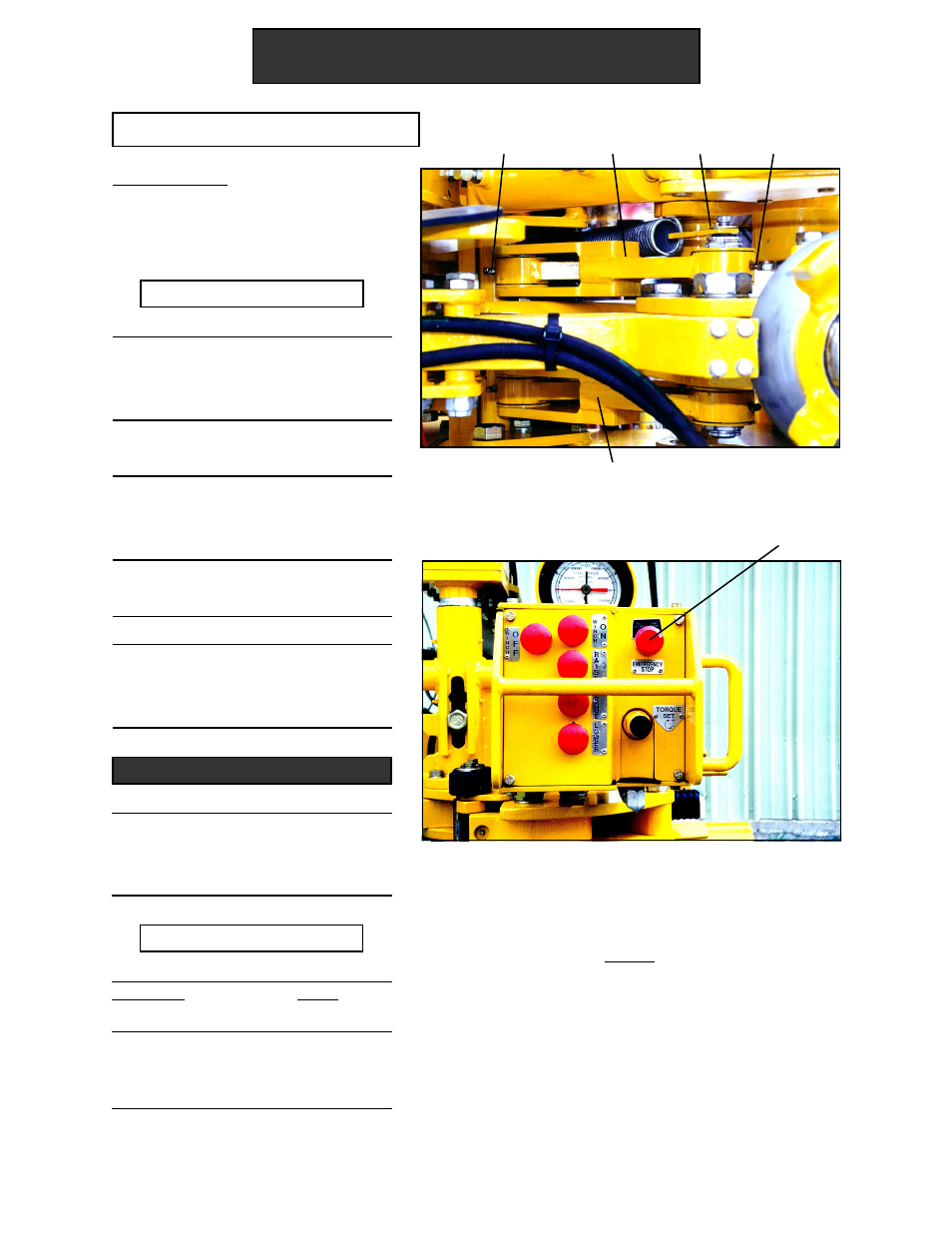

Mounting Arm Pivot Points
1. Pump grease fittings MP1-MP3
on each Mounting Arm (M1,
M2).
MP3
Part Numbers
Part Name Part #
Straight Grease Fitting 016-1103-K1
45° Grease Fitting 016-1103-K2
90° Grease Fitting 016-1103-K3
NOTE
Consistent lubrication of the
mounting arm pivot points increases
performance and component life.
MP2 MP1 M1
M2
E
Grease Once per Week, Minimum
