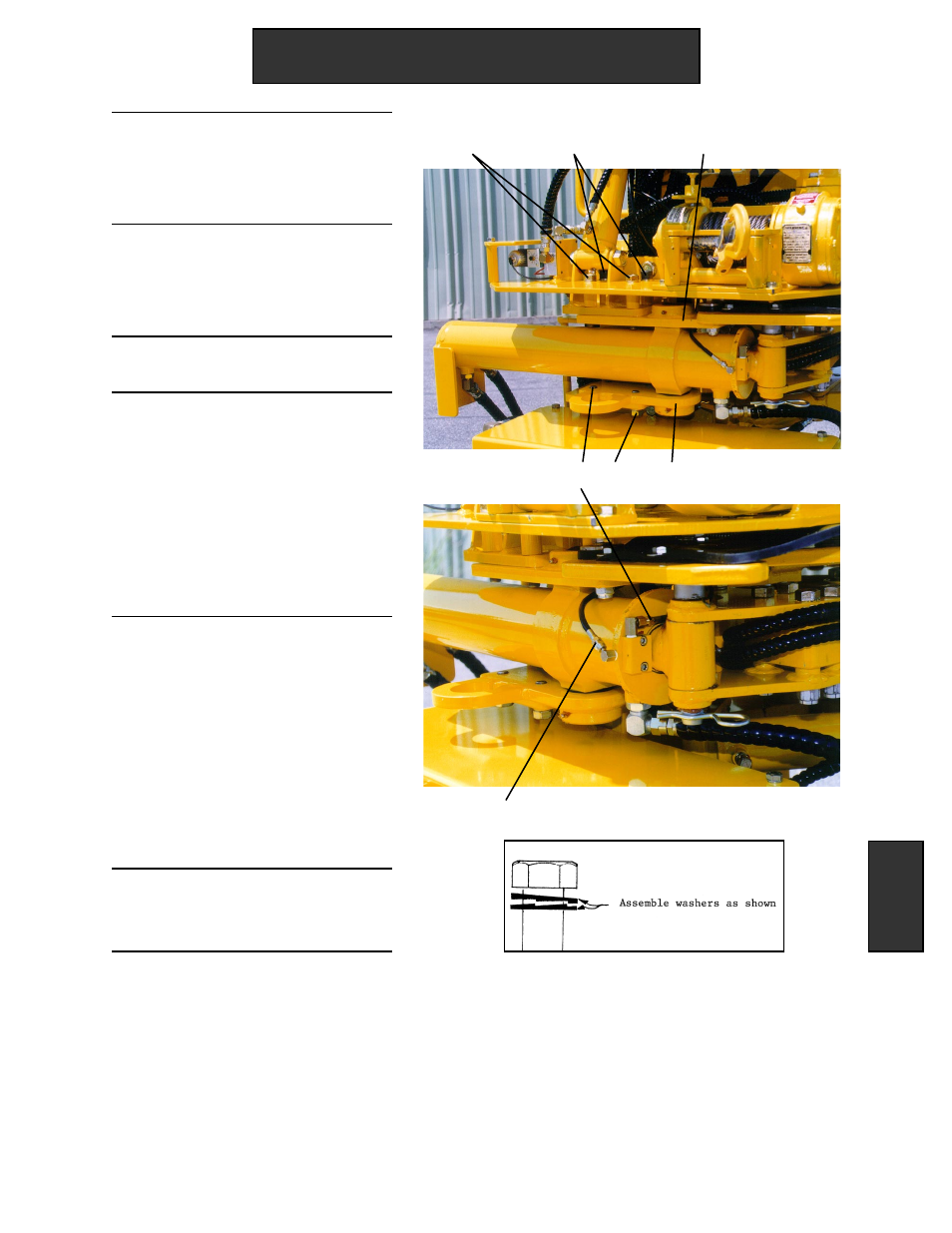

Changing the Torque Cylinder (cont.)
14. Use air pressure or manual force to
extend the new Torque
Cylinder Rod to the length of the
old Torque Cylinder Rod.
15. Place the Bottom Trunion
Mount Plate (BMP) and Top
Trunion Mount Plate (TMP) on
the new Torque Cylinder.
16. Slide in the new Torque
Cylinder.
17. Use the 1 1/8" wrench to replace
the Bottom Torque Cylinder
Mount Bolts (BB). Use new
Lock Washers and red loctite
when replacing the Bottom
Torque Cylinder Mount Bolts
(BB). Assemble the Lock
Washers as shown.
18. Use the 1 1/8" wrench and 5/8"
Allen wrench to replace the Top
Torque Cylinder Mount Bolts
(TBH), (TBA). Use new Lock
Washers and red loctite when
replacing the Top Torque
Cylinder Mount Bolts (TBH),
(TBA). Assemble the Lock
Washers as shown.
19. Connect the Low Torque
Warning System Hydraulic Hoses
(HH &HH1).
BB
TMP
Maintenance
& Repair
Maintenance & Repair 57
BMP
TBH TBA
Continued on next page.
HH1
HH
