Viewing Port Configuration
Issue 5 October 2007 55
The 802.1x application supports two modes of operation:
● Port-based-authentication, which is backwards compatible to the previous 802.1x
application behavior, and is used for a single-supplicant case.
● MAC-based-authentication for cases where multiple supplicants are connected per port.
For more information, refer to
“Device Configuration - 802.1x Tab” on page 44 .
The 802.1X tab of the Port Configuration dialog box provides you with detailed 802.1X
authentication information about the selected port.
Note:
Note:
Avaya G450 Devices do not support the 802.1x protocol, therefore the 802.1x tab
does not appear for an Avaya G450 Device.

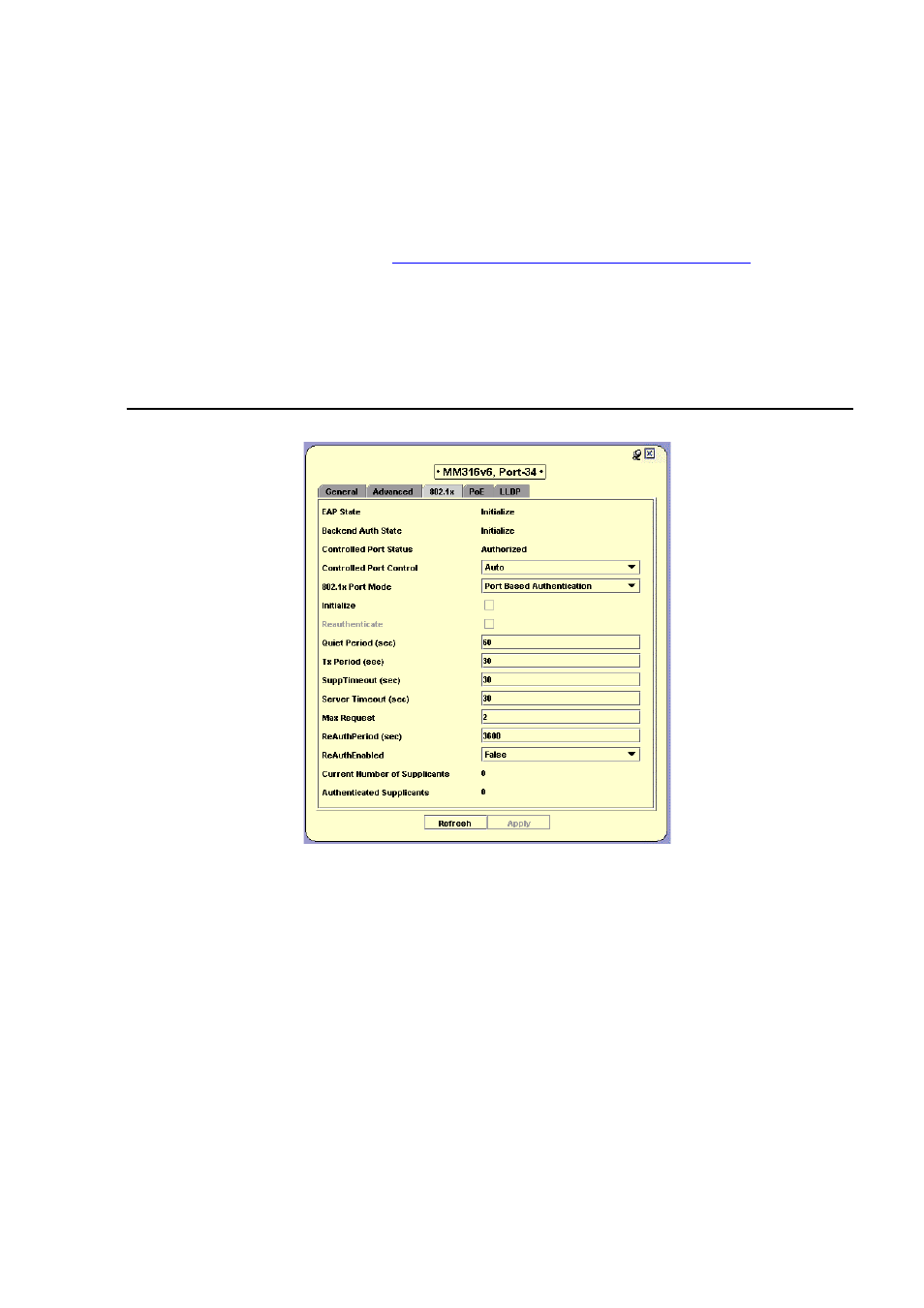

Figure 16: Port Configuration Dialog Box - 802.1X Tab
