The Port Mirroring Wizard
Issue 5 October 2007 181
Port Mirroring Wizard - Source Port Selection
The Source Port Selection screen of the Port Mirroring Wizard helps you select a source port for
the Port Mirroring pair. Ports that can be selected as sources appear in white in the Chassis
View.

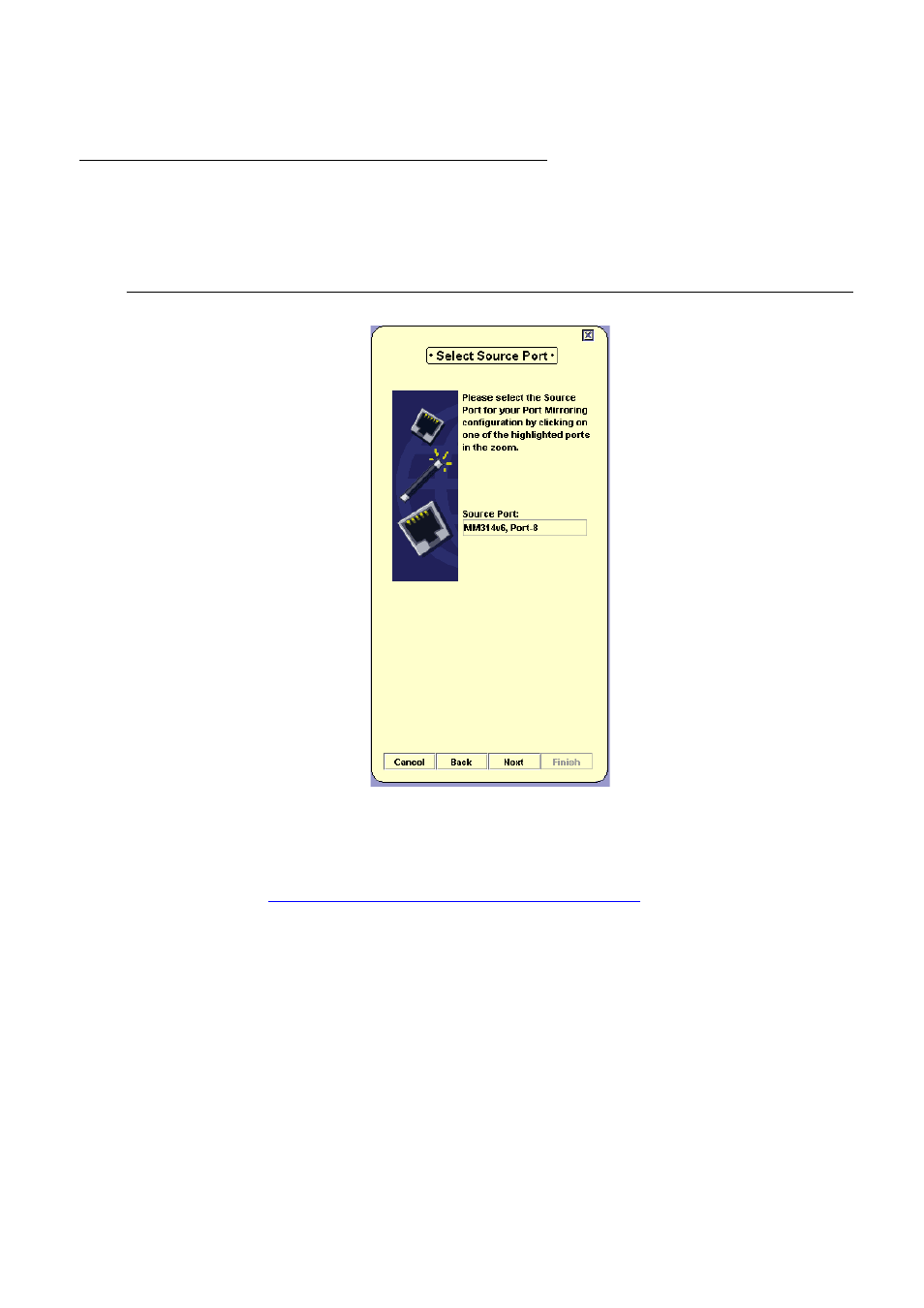

Figure 80: Port Mirroring Wizard - Source Port Selection Screen
To select a source for the Port Mirroring pair, select a highlighted port in the Chassis View. The
selected port appears blue in the Chassis View and Tree View and is listed in the Source Port
field in the wizard.
When you have selected the source for the Port Mirroring, click Next. The Port Mirroring Wizard
continues with the
Port Mirroring Wizard - Destination Port Selection screen.
