Configuring Backup Interfaces
Issue 5 October 2007 151
Dynamic CAC
The Dynamic CAC dialog box enables you to configure the Dynamic CAC function on a WAN
interface. Dynamic CAC allows the Avaya G250/G350/G450 Device to control traffic flow
between itself and a remotely located call controller.
To configure Dynamic CAC on a WAN interface:
1. Select Configure > WAN > Dynamic CAC. The Dynamic CAC dialog box opens.

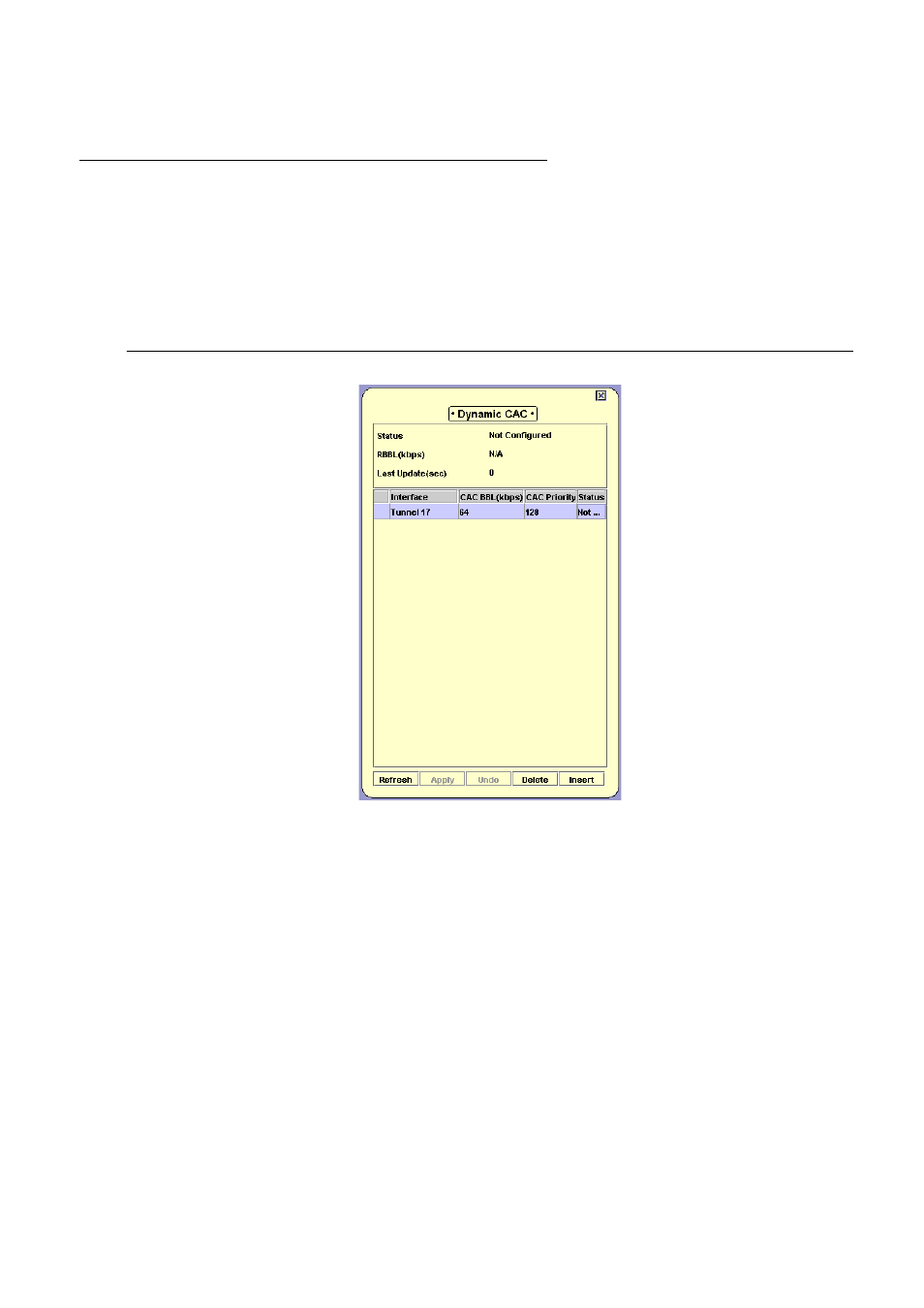

Figure 64: Dynamic CAC Dialog Box
To add a new interface, click Insert. A blank row appears in the interface list.
To edit an existing interface, double-click the row in the interface list.
To delete an interface, select the interface you want to delete and click Delete. The row is
deleted.
