Viewing Channel Group Information
Issue 5 October 2007 111
● Sub-Interfaces - Information about the Channel Group’s sub-frame relays.
● DLCIs - DLCI information for the Channel Group.
Frame Relay
The Frame Relay tab of the Channel Group dialog box provides information about the frame
relay configuration of the Channel Group.
To view the Frame Relay tab of the Channel Group dialog box:
1. Click a Channel Group icon in the Chassis View. A list of Channel Groups on the port
appears.
2. Click the Channel Group you want to configure. The Channel Group dialog box opens with
the Channel Group tab.
3. Click Frame Relay. The Frame Relay tab of the Channel Group dialog box opens.

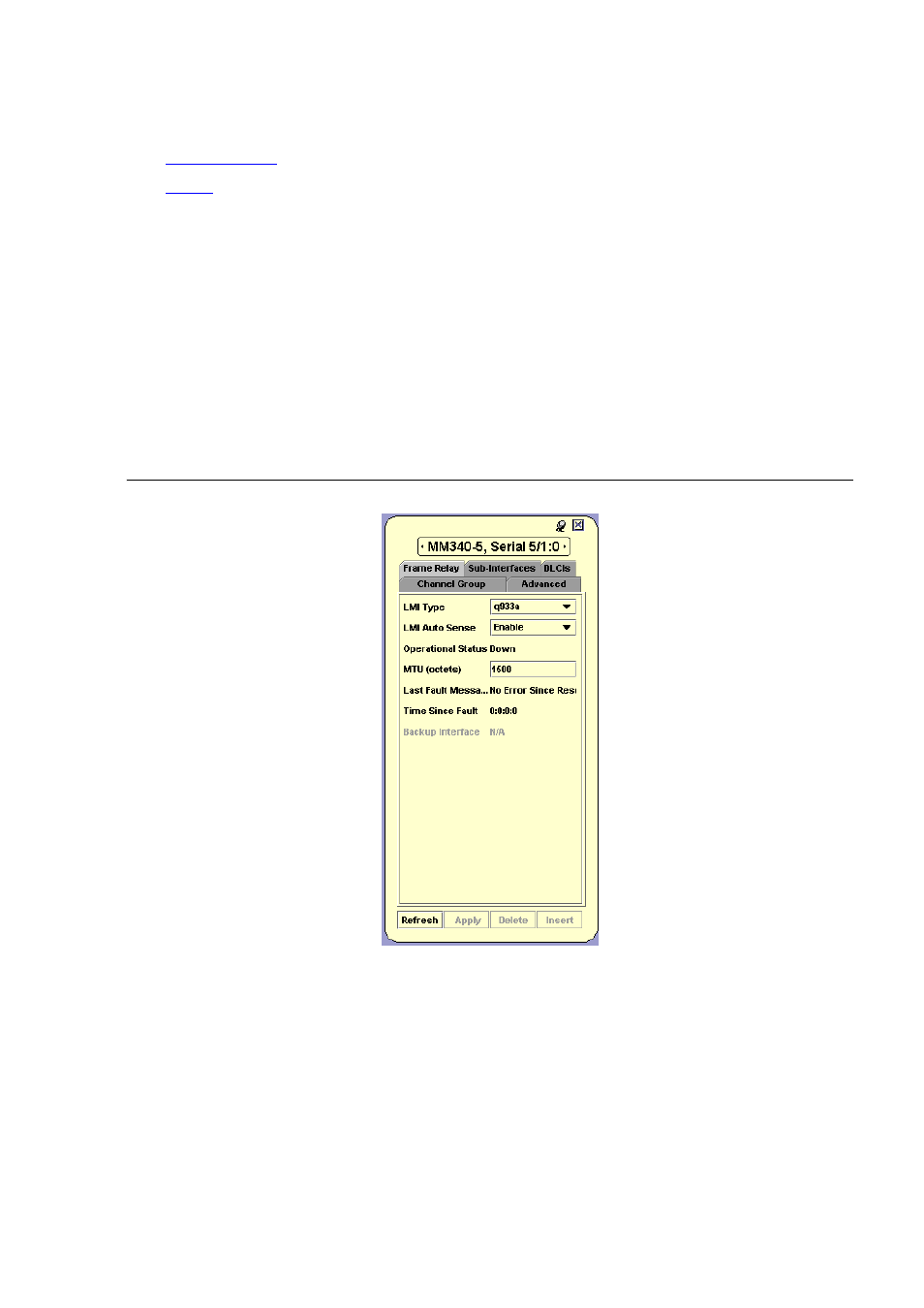

Figure 41: Channel Group Dialog Box - Frame Relay Tab
