There are normal video and video with data signals
available from the same pair of connectors.
• To switch between normal video and video with data,
use the on-screen program mode. Enter the main menu
by pressing the Enter/Insert key Ñ for more than 3
seconds. Go to sub menu VIDEO/TEXT ADJUST. The
menu line Y/C DATA, which can only be reached if
BNC OUT is on Y/C, switches between normal video
and video with data on the Y/C signal. The line
displays Y/C DATA ON or OFF.
See chapter 10.4 Inserter Facilities for information on the
on-screen program mode.
In the normal video output almost no electronic information
is inserted. Only a rolling bar at the lower left corner of
the video image indicates a running film camera.
In the video with data output, additional data such as
format marks or camera status information can be inserted.

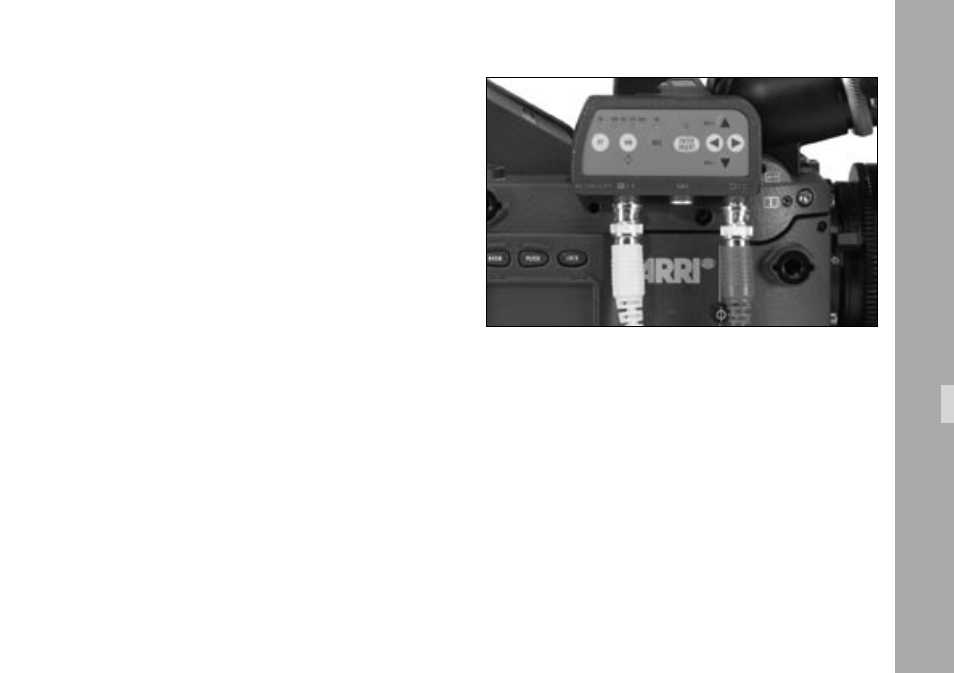

An adapter from the two BNC connectors to a standard
Y/C connector is included in the IVS package upon initial
delivery. Connect the red end to the È/C output and
the white end to the É/Y socket ➪ photo .
Video-Assist-System
