Low Mode Support LMS-1
The Low Mode Support LMS-1
➪
photo is a sturdy triple
post camera handle with integrated Steadicam low mode
plate that attaches to the 235 camera body. It consists of
the Low Mode Bracket (K4.65142.0) ➪ photo , the Low Mode
Support Handle (K4.65140.0)
➪
photo and Low Mode
Riser (K4.65141.0) ➪
photo and is compatible with all
magazines. The Low Mode Bracket is mounted with 3
hexagonal screws ➪ photo to the 235 camera body.
The Low-Mode Handle can be attached on both the basic
Low-Mode Bracket or the Low-Mode Riser. There are two
mounting positions on the plates, one at the rear of the plate
➪ photo , and one position 65mm forwards. The handle can
be mounted in either position facing forwards or rearwards;
in this way, the grip balance can be adapted to best fit the
magazine and lens in use.
The Low-Mode Bracket alone offers the lowest profile and
smallest plate-to-lens distance, optimal for Steadicam
applications. It can be attached with the viewfinder on the
camera; however, since the Low-Mode Bracket remains under
the level of the viewfinder itself, removal of the viewfinder
will be necessary in applications requiring the attachment
of a longer plate onto the Low-Mode Bracket.

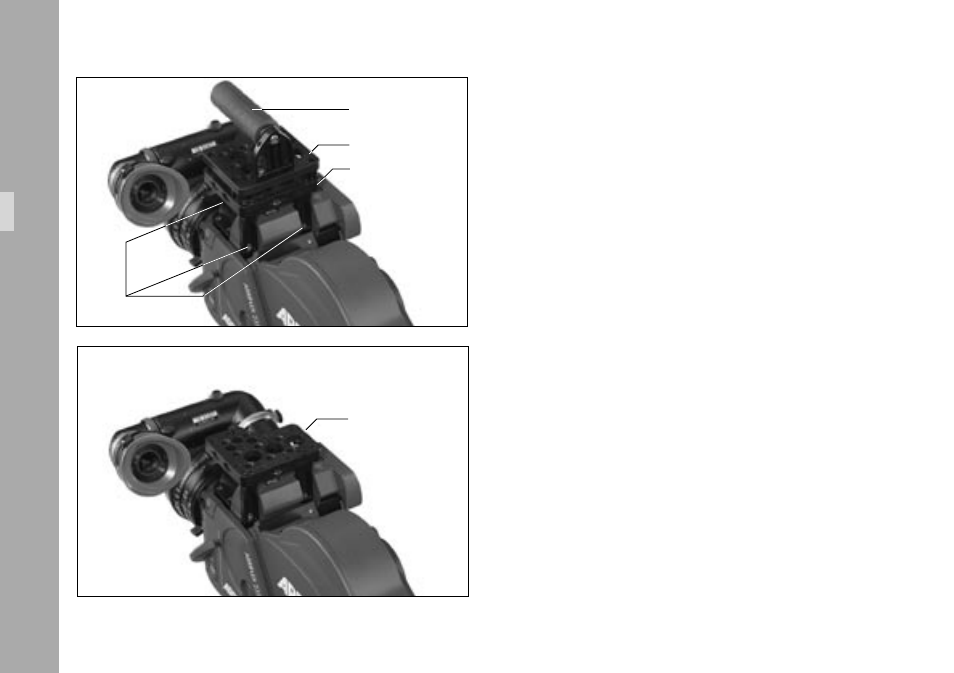

hexagonal screws
Installation
low mode support handle
low mode riser
low mode bracket
low mode bracket
