8.2 Viewfinder System
The viewfinder system on the ARRIFLEX 235 can be
swivelled in two axes. The viewfinder image is always
upright and correct left-to-right when the viewfinder is
swivelled within the main axes ➪ photo .
An 80/20 beamsplitter for the video assist is integrated
into the camera body. The viewfinder and the video assist
can be used independently from each other.

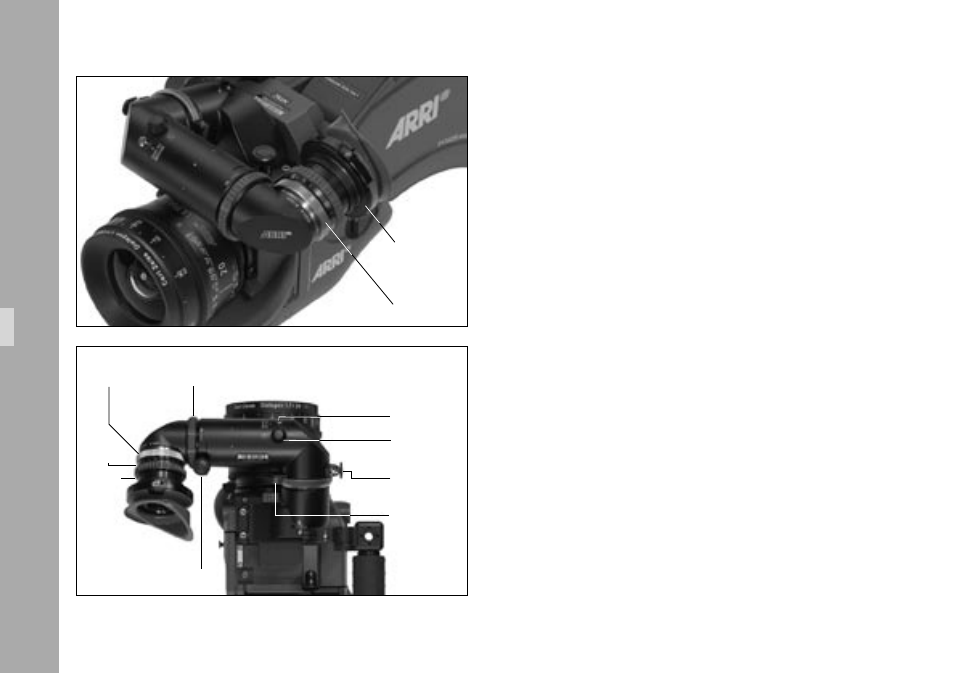

The Eyepiece
Removing the Eyepiece
• Hold the eyepiece with one hand and with the other
turn the knurled ring (eyepiece)
➪
photo towards the
“OPEN” position as far as it will go.
• Remove the eyepiece ➪ photo .
Attaching the Eyepiece
• Ensure that the knurled ring is turned to the “OPEN”
position.
• Position the eyepiece on the viewfinder.
• Turn the knurled ring (eyepiece)
➪
photo towards the
“LOCK” position.
• Check that the eyepiece is correctly seated.
knurled ring
eyepiece
Optics
knurled ring (eyepiece)
diopter scale
eyepiece
knurled ring
knurled knob
locking key
adjustment knob
allen screw
unlocking key
