4.5 Lens Support
The lens support consists of the lens support LS-7 (can be
snapped onto 19 mm support rods) ➪
photo or the lens
support LS-8 (can be pushed onto 15 mm support rods) and
the respective lens support ring ➪ photo for the lens in use.
• Mount the lens support onto the support rods from above
and let it click into place by applying slight pressure
(push the LS-8 onto the support rods from the front).
• Slide the relevant support ring
➪
photo onto the lens
but do not tighten.
• Then slide the lens into the lens mount receptacle and lock.
• Connect the support ring to the lens support and tighten
the knurled screw ➪ photo as well as the clamping
lever ➪ photo .
• Complete the process by tightening the clamp screw
➪ photo on the support ring.
Note: Mounting the support ring on the relevant lens
is usually carried out only once. The support
ring can then remain in position on the lens.

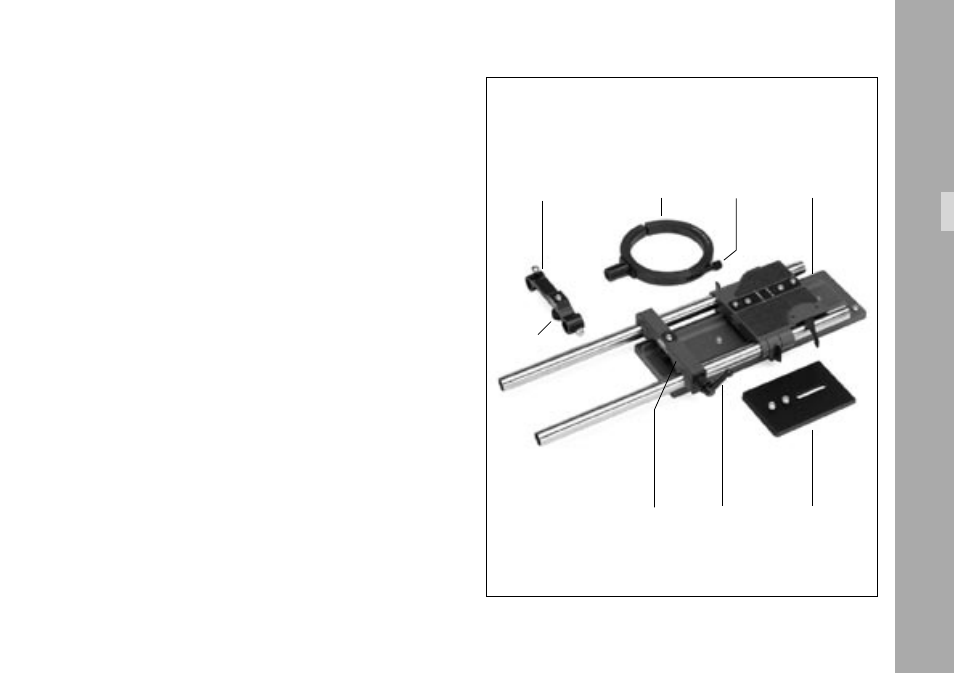

base plate lens support
LS-8
lens support ring clamp screw
wedge plate
knurled screw
lens support
LS-7
clamping lever
Installation
