10.2 Setup

10.2.1 Installation

A 1.5 mm allen key and a 3 mm allen key are used.

Take the handle and the transport cover off the camera.

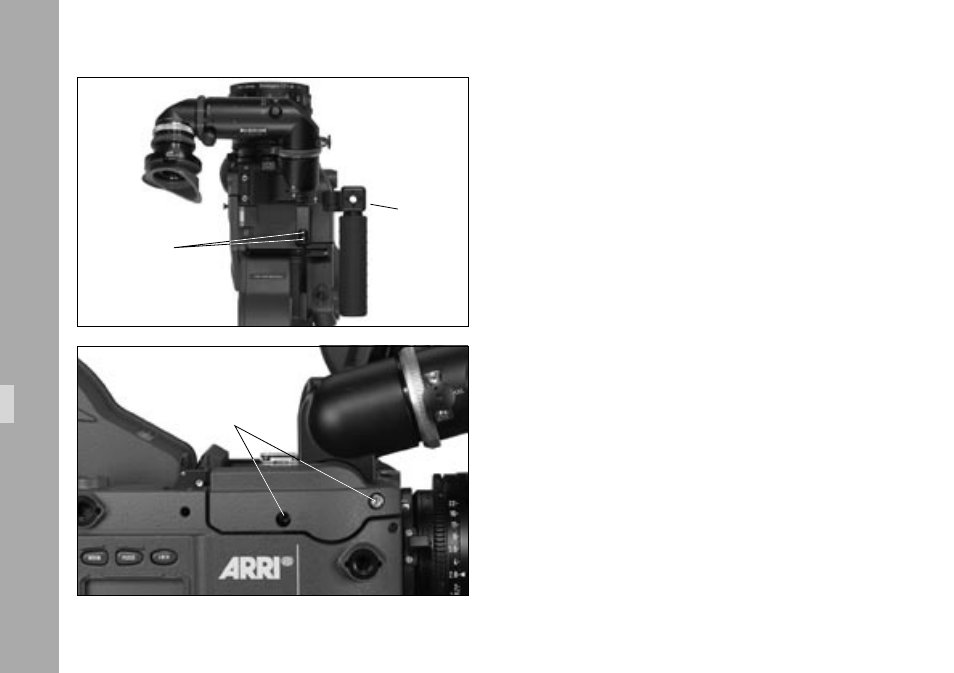

• To take the handle off, open the two screws on the

base of the handle


with a 3 mm allen key

and remove the handle.

• To take the transport cover off, open the two screws


with a 3 mm allen key and remove the

transport cover.

screws for handle

handle

screws for transport cover

Video-Assist-System
