Universal Viewfinder UV-1
When using anamorphic lenses, the UV-1 allows desqueezed
viewing of the ground glass image. This viewfinder arm
can also be switched over to check the anamorphically
squeezed image.

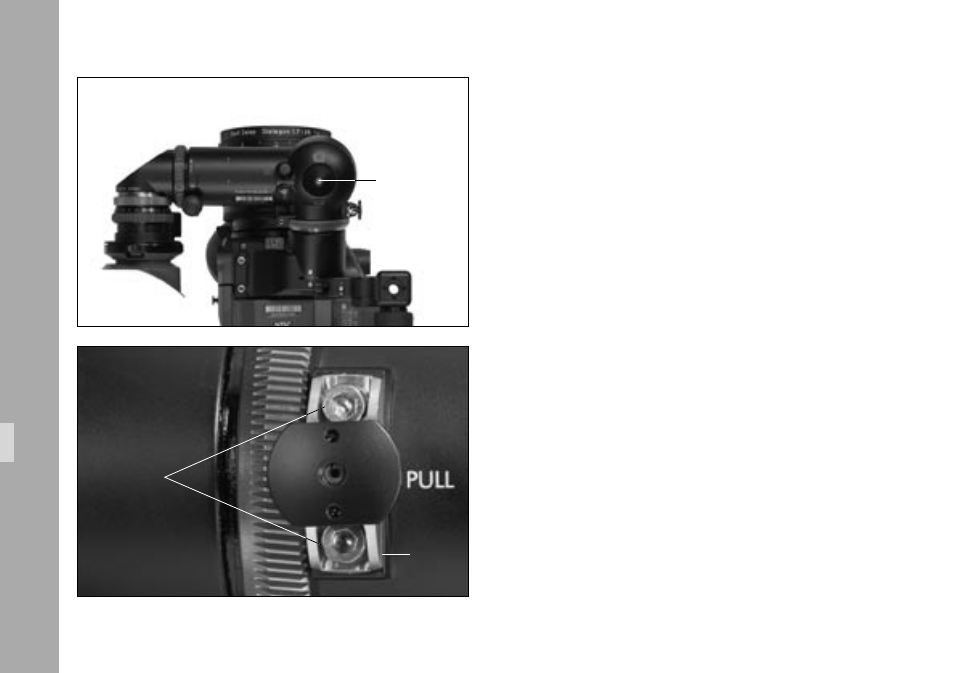

• To switch over the viewfinder image, turn the switching
knob ➪
photo . The knob does not need to be unlocked.
All other operating elements are identical in function to
those on the standard viewfinder. The anamorphic viewfinder
can also be used together with the 235 finder extender.
Adjusting the UV-1
Unlike the standard viewfinder, the anamorphic
viewfinder will only provide an undistorted image in
horizontal, locked position. The locking stops of the UV-1
can be adjusted to an exactly horizontal position.
• Loosen (do not remove) the two allen screws ➪
in the locking stop.
• Move the block ➪ photo until the viewfinder image is
free of distortion.
• Retighten the allen screws.
switching knob
allen screws
block
