Low Mode Handle

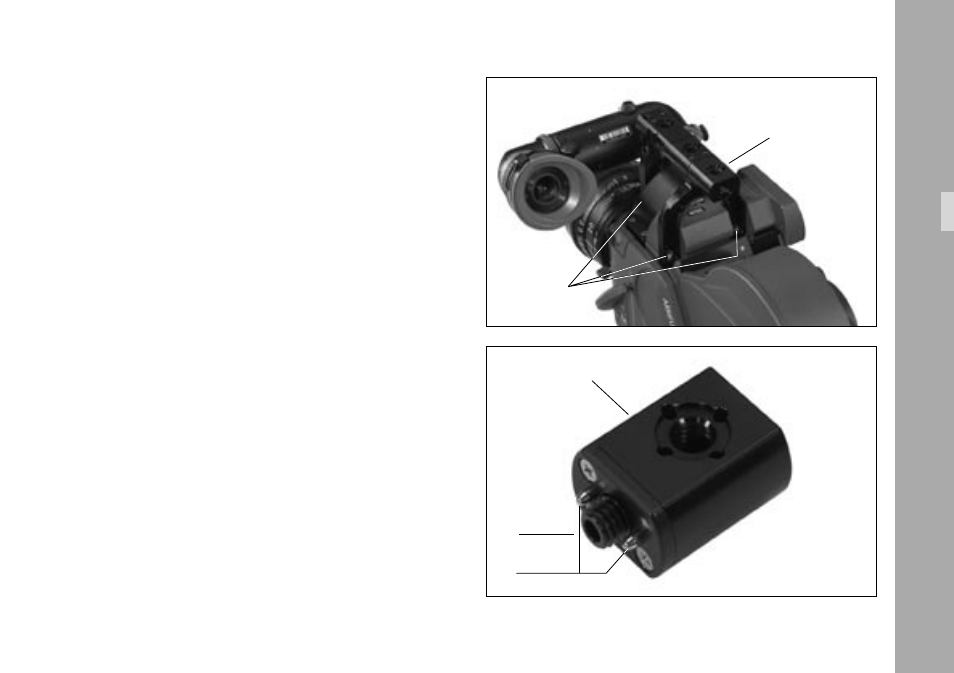

The low mode handle is a triple post handle. It can be mounted
to the camera using 3 hexagonal screws ➪
photo .
To the low mode handle various accessories can be attached
using the 3/8” holes.
The low mode handle can be extended with the handle
extension block ➪ photo . The handle extension block
can be mounted to any of the 3/8” holes by first placing
the 2 pins
➪
photo into the according pin holes on the
handle and then fastening the extension block screw
➪ photo inside the extension block by using a long
5mm allen key. Note that the viewfinder cannot be swung
over to the camera right side when the Handle Extension
Block is attached to the front of the Low Mode Handle.
Note: The low mode handle is positioned in the center
of gravity.
hexagonal screws
handle extension block
handle extension block
pins
extension block
screw
