72 72

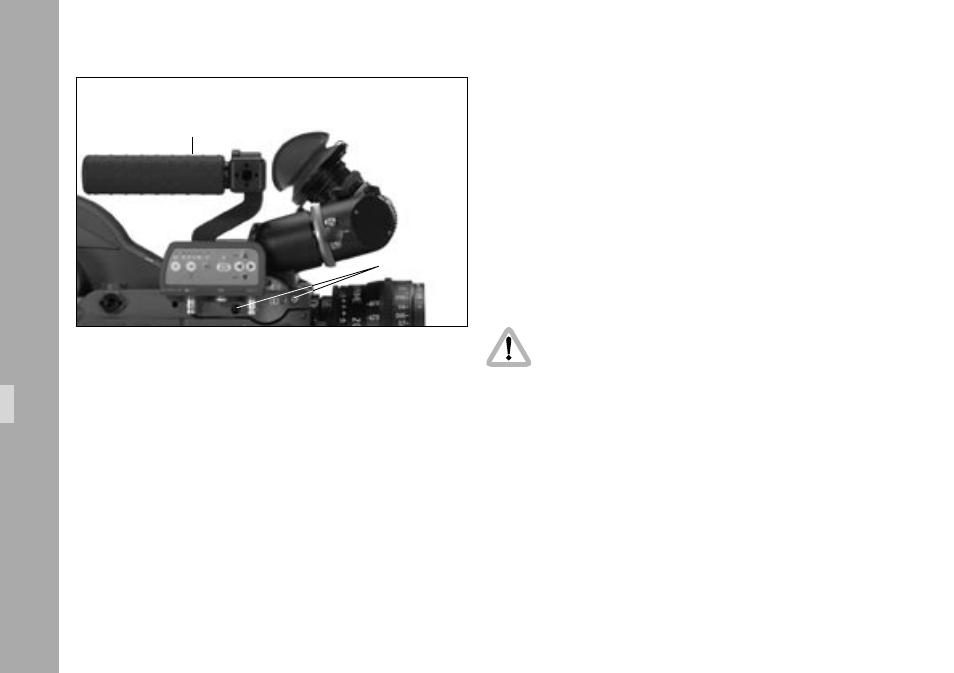

• Push the IVS as shown until the gap between the
camera and the IVS closes.
• Close the screws on the IVS ➪
photo with a
3 mm allen key.
• Remount the handle
➪
photo and close the screws on
the base of the handle with a 3 mm allen key.
10.2.2 Cabling
Outputs
In case the composite output should be used
and it is unknown, weather the BNC connectors
on the IVS are switched to composite or to Y/C,
please connect the composite signal to the
É/Y first and check the settings (BNC OUT
VBS or Y/C) in the menu video/text adjust.
Please see next chapter Composite Video
Outputs.
The IVS has two BNC sockets, which can be switched to
output two independent composite signals or one Y/C
signal. Additionally, there is an output for a mini monitor
handle
screws for IVS
Video-Assist-System
