OmniConnect / ISDN User’s Manual Page 64
Part number 613-10787-00
7.4.5. Phone extension

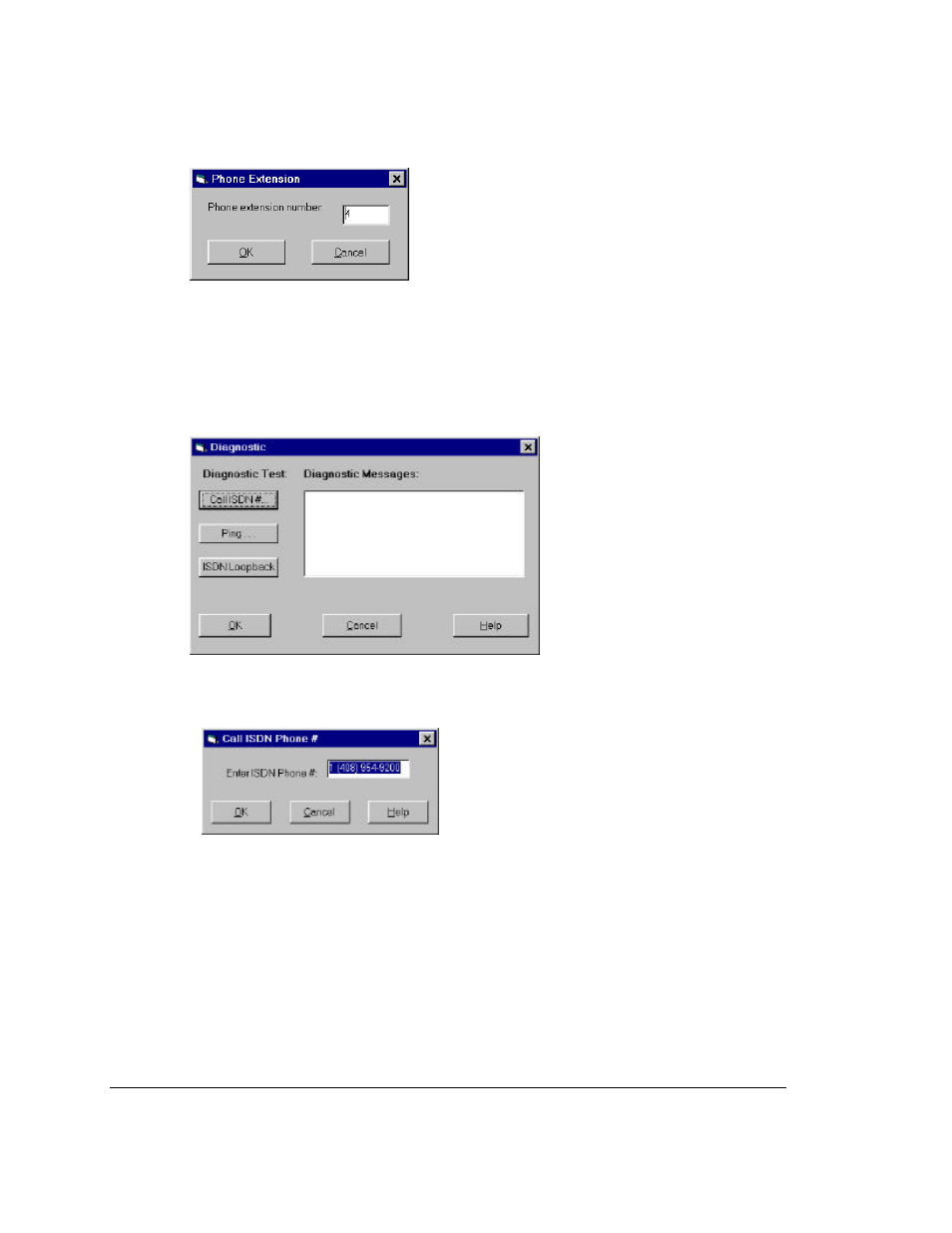

The Phone Extension screen is used to enter the
extension of the user’s phone. The OmniConnect/ISDN
access device supports a single extension and therefore,
this setting should always be 1. Other versions of the
OmniConnect access device series support multiple
extensions. In this case, each phone must be assigned a
unique extension in order for OmniConnect Monitor to
differentiate the phone for which the incoming call is
destined.
7.4.6. Diagnostics
The OmniConnect/ISDN monitor utility has extensive built-in diagnostic capability. The
diagnostics testing capability of OmniConnect/ISDN includes three different tests: Call ISDN
#, Ping and ISDN Loopback test.
7.4.6.1. Call ISDN #…
The Call ISDN phone number tests the ability of
OmniConnect/ISDN access device to call a specific
ISDN number. When you select this test to run, the
OmniConnect monitor utility brings up a dialog
box to get an ISDN phone number to call. This
dialog box is shown below.
Once you have entered a valid phone number, start the test by pressing the OK button. This
test will verify if the ISDN parameters are configured correctly in the OmniConnect/ISDN
access device. The OmniConnect/ISDN device will call the ISDN destination by dialing the
phone number and then disconnecting from the destination.
