OmniConnect / ISDN User’s Manual Page 49
Part number 613-10787-00
Route Disable check boxes. Make this static route entry permanent or temporary by selecting
one of these options from the Route Type pull down menu. The temporary route entries are
lost when the OmniConnect access device is powered down. The Permanent route entries are
stored in the FLASH memory located in the OmniConnect. The permanent router table entries
are not lost between power recycles.
The destination IP address of the host or network for which the static route is configured is
entered in the IP Address field. The Next Hop Gateway or access device to which packets that
use this static route should be sent must be inserted in the Gateway (Interface) field. The Host
or Network check boxes are used to distinguish between a static route entry that defines a
route to a particular host or to a complete IP subnet. If an IP subnet static route is being
defined, it is acceptable to leave portions of the IP Address entry at zero.

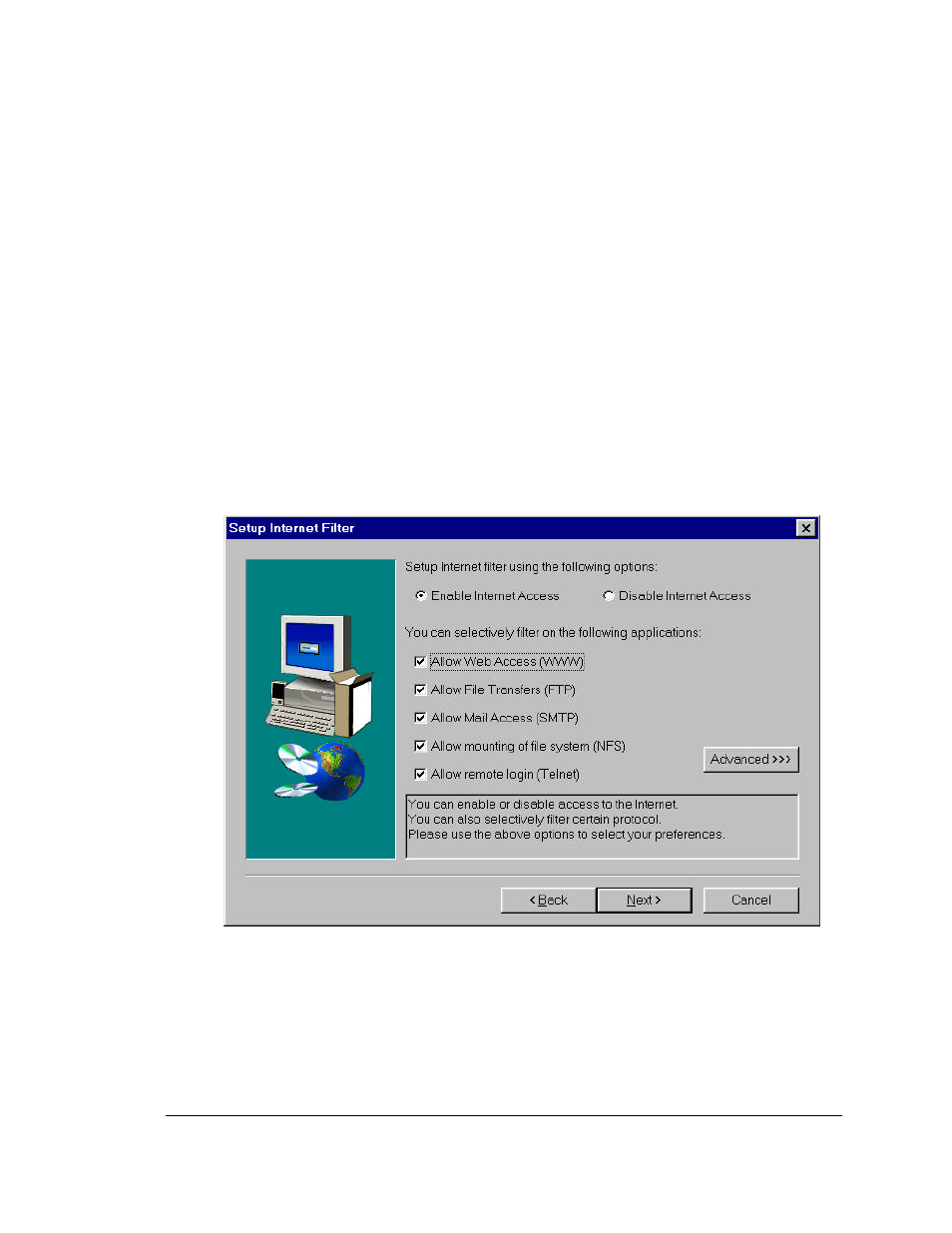

6.3.4. Setup Internet filter
The OmniConnect access device allows the user to configure a powerful set of filters for
Internet traffic. These filters may be used for the purposes of configuring an Internet firewall,
to allow access to certain applications or to restrict access to a certain group of users. The
Setup Internet Filter screen is used to define these filters.
The Enable Internet Access control enables Internet traffic to and from the OmniConnect
access device. The Disable Internet Access control disables all access to the Internet. If the
user selects the Disable Internet Access button, all traffic to and from Internet will be blocked.
