PAE System Control
Existing 802.1x port settings are displayed and can be configured using the windows below.
Port Capability Settings
Click Port Access Entity > PAE System Control > 802.1X Capability Settings to view the following window:

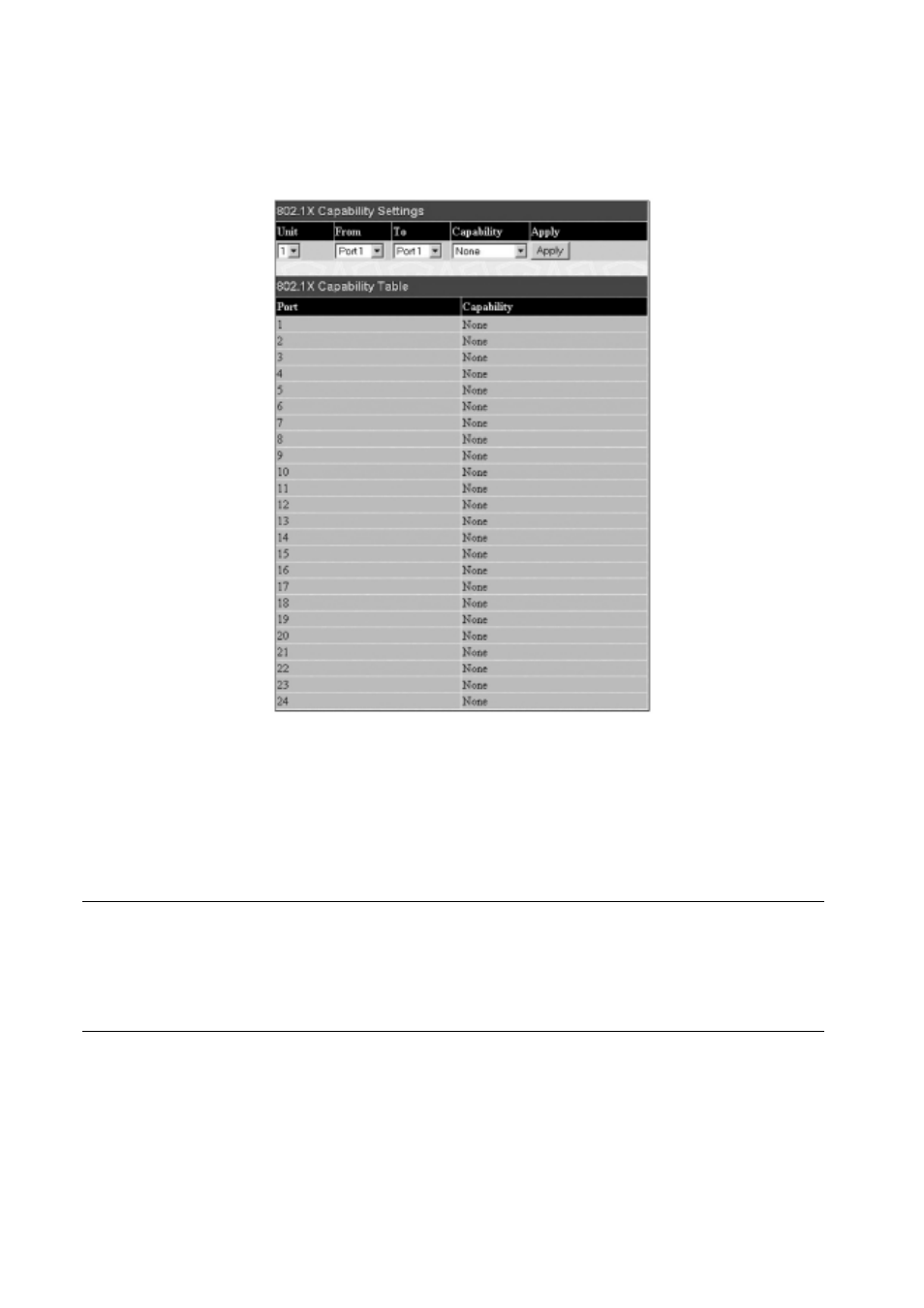

Figure 6- 78. 802.1x Capability Settings and Table window
To set up the Switch's 802.1x port-based authentication, select the switch in the switch stack by using the Unit pull-down menu and then select which ports are
to be configured in the From and To fields. Next, enable the ports by selecting Authenticator from the drop-down menu under Capability. Click Apply to let
your change take effect.
Configure the following 802.1x capability settings:
Parameter Description
Unit Choose the Switch ID number of the Switch in the switch stack to be modified.
From and To Ports being configured for 802.1x settings.
Capability Two role choices can be selected:
Authenticator – A user must pass the authentication process to gain access to the network.
None – The port is not controlled by the 802.1x functions.
