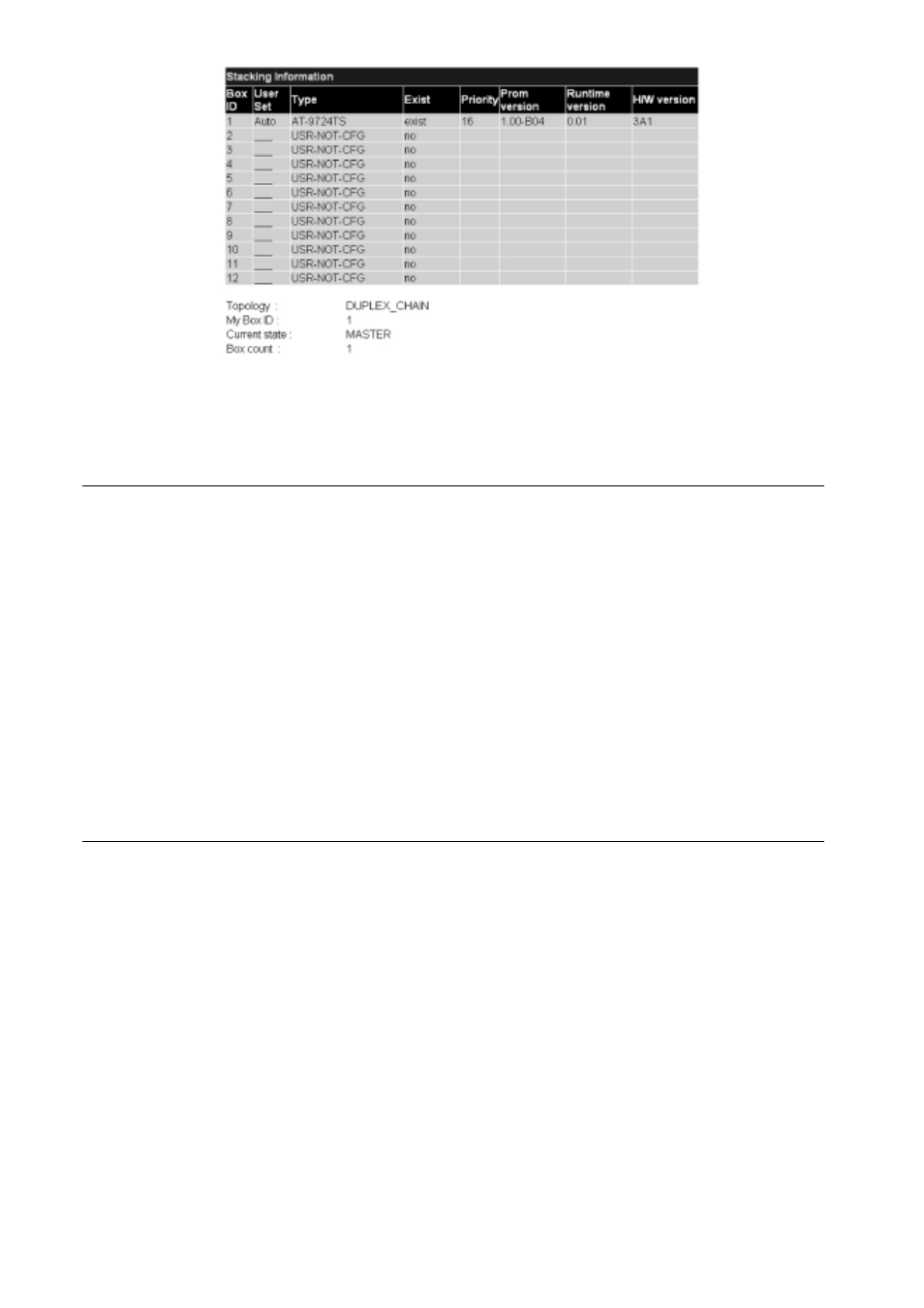

Figure 9- 15. Stacking Information window
The Stacking Information window holds the following information:
Parameter Description
Box ID Displays the Switch’s order in the stack.
User Set Box ID can be assigned automatically (Auto), or can be assigned statically. Default is Auto.
Type Displays the model name of the corresponding switch in a stack.
Exist Denotes whether a switch does or does not exist in a stack.
Priority Displays the priority ID of the Switch.The lower the number, the higher the priority.The box (switch) with the
lowest priority number in the stack denotes the Master switch.The AT-9724TS will always be the master switch
in a Star topology.
Prom Version Shows the PROM in use for the Switch.This may be different from the values shown in the illustration.
Runtime Version Shows the firmware version in use for the Switch.This may be different from the values shown in the
illustrations.
H/W Version Shows the hardware version in use for the Switch.This may be different from the values shown in the
illustration.
Topology Show the current topology employed using this Switch.
My Box ID Displays the Box ID of the Switch currently in use.
Current State Displays the current stacking state of the Switch, which may be MASTER or SLAVE.
Box Count Displays the number of switches in the switch stack.
Device Status
The Device Status window can be found in the Monitoring menu by clicking the Device Status link.This window shows the status of the physical
attributes of the Switch, including power sources and fans.
