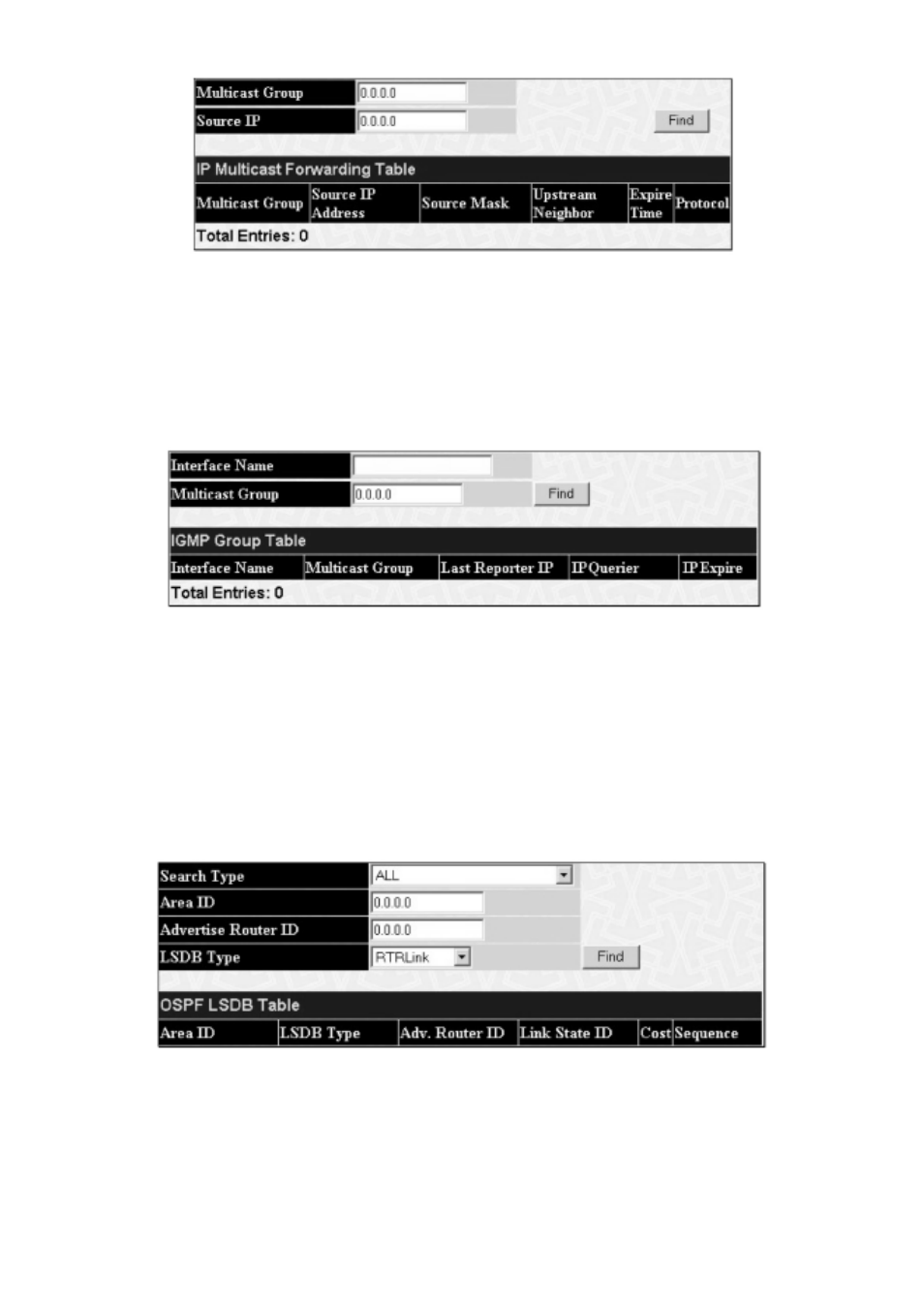

Figure 9- 32. Browse IP Multicast Forwarding Table
Browse IGMP Group Table
The Browse IGMP Group Table window may be found in the Monitoring menu in the Layer 3 Feature folder.This window will show current IGMP
group entries on the Switch.To search a specific IGMP group entry, enter an interface name into the Interface Name field or a Multicast Group IP
address and click Find.
Figure 9- 33. Browse IGMP Group Table
OSPF Monitoring
This section offers windows regarding OSPF (Open Shortest Path First) information on the Switch, including the OSPF LSDB Table, OSPF Neighbor
Table and the OSPF Virtual Neighbor Table.To view these tables, open the Monitoring folder and click OSPF Monitoring.
Browse OSPF LSDB Table
This table can be found in the OSPF Monitoring folder by clicking on the Browse OSPF LSDB Table link.The OSPF Link-State Database Table
displays the current link-state database in use by the OSPF routing protocol on a per-OSPF area basis.
Figure 9- 34. Browse OSPF LSDB Table
The user may search for a specific entry by entering the following information into the fields at the top of the screen:
To browse the OSPF LSDB Table, you first must select which browse method you want to use in the Search Type field.The choices are All, Area ID,
Advertise Router ID, LSDB,Area ID & Advertise Router ID, Area ID & LSDB, and Advertise Router ID & LSDB.
If Area ID is selected as the browse method, you must enter the IP address in the Area ID field, and then click Find.
If Adv. Router ID is selected, you must enter the IP address in the Advertisement Router ID field, and then click Find.
If LSDB is selected, you must select the type of link state (RtrLink, NetLink, Summary, ASSummary and ASExtLink) in the LSDB Type field, and then click Find.
