The user may configure the following parameters to configure the CIST on the Switch.
Parameter Description
MSTI ID The MSTI ID of the CIST is 0 and cannot be altered.
Type The type of configuration about to be processed.This window is used to add or delete VIDs to the configured
MSTI or internal CIST. All other parameters are permanently set and therefore unchangeable.
VID List (1-4094) This field is used to specify the VID range from configured VLANs set on the Switch. Supported VIDs on the
Switch range from ID number 1 to 4094.
Click Apply to implement changes made.
To configure the parameters for a previously set MSTI, click on its hyperlinked MSTI ID number, which will reveal the following screen for configuration.

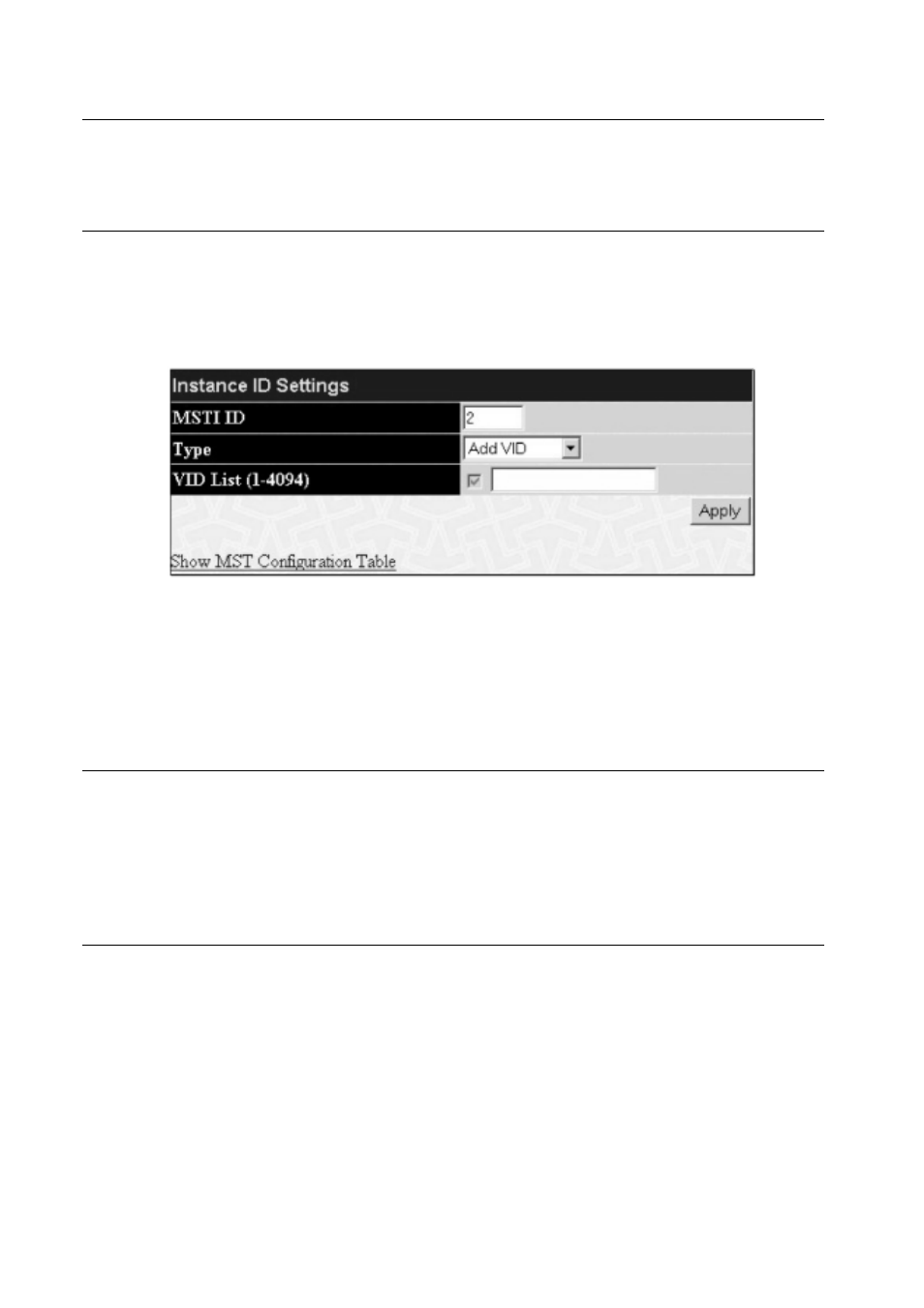

Figure 6- 27. Instance ID Settings window – modify
The user may configure the following parameters for a MSTI on the Switch.
Parameter Description
MSTI ID Displays the MSTI ID previously set by the user.
Type This field allows the user to choose a desired method for altering the MSTI settings.The user has 4 choices.
Add VID – Select this parameter to add VIDs to the MSTI ID, in conjunction with the VID List parameter.
Remove VID – Select this parameter to remove VIDs from the MSTI ID, in conjunction with the VID List
parameter.
VID List (1-4094) This field is used to specify the VID range from configured VLANs set on the Switch that the user wishes to add
to this MSTI ID. Supported VIDs on the Switch range from ID number 1 to 4094.This parameter can only be
utilized if the Type chosen is Add or Remove.
Click Apply to implement changes made.
47 Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch
