65 Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch
6-17 Port Lock Entries
The Port Lock Entry Delete window is used to remove an entry from the port security entries learned by the Switch and entered into the forwarding
database.To view the following window, click Configuration > Port Lock Entries:

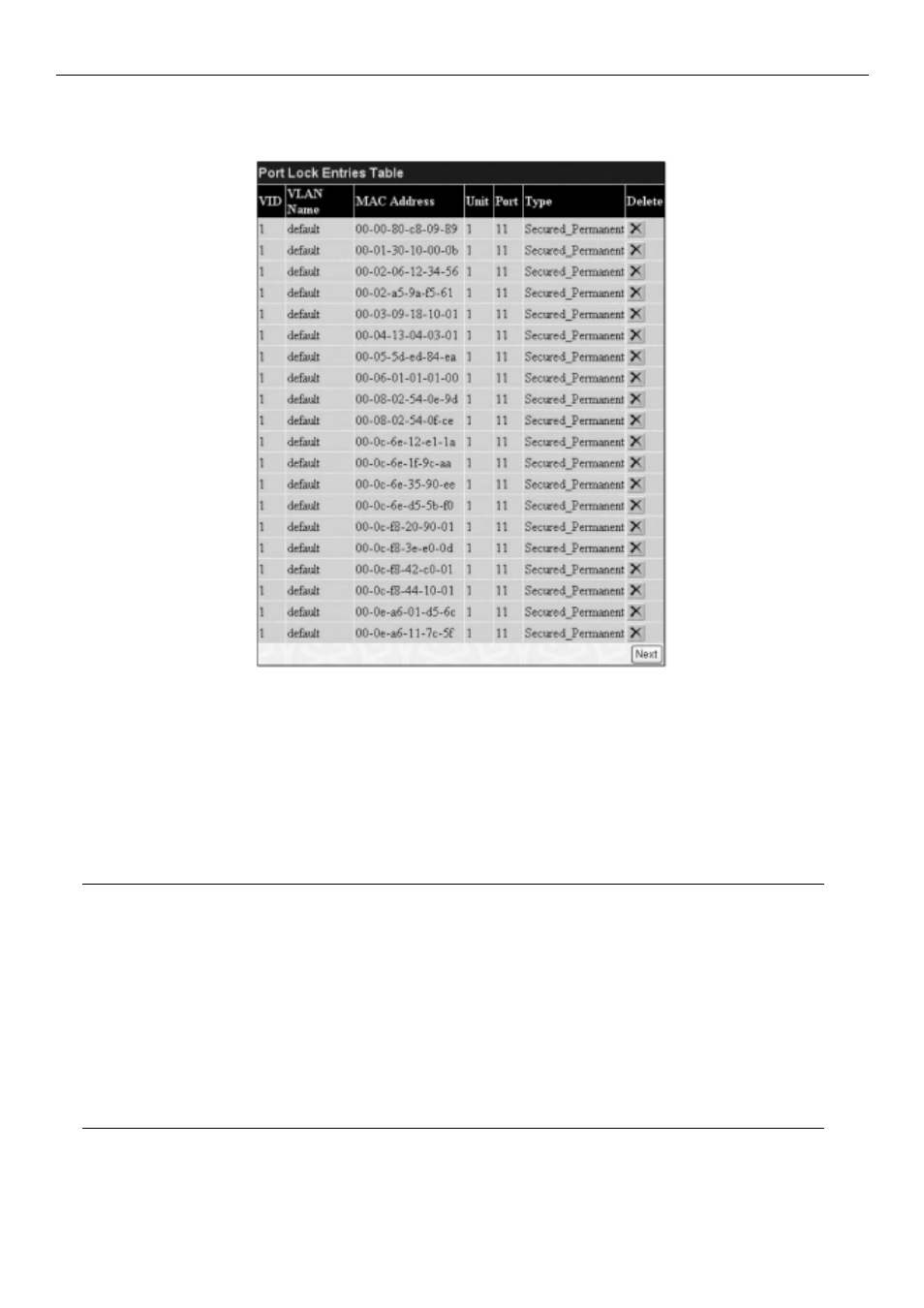

Figure 6- 46. Port Lock Entries Table
This function is only operable if the Mode in the Port Security window is selected as Permanent or DeleteOnReset, or in other words, only addresses
that are permanently learned by the Switch can be deleted. Once the entry has been defined by entering the correct information into the window above, click
the
under the Delete heading of the corresponding MAC address to be deleted. Click the Next button to view the next page of entries listed in this table.
This window displays the following information:
Parameter Description
VID The VLAN ID of the entry in the forwarding database table that has been permanently learned by the Switch.
VLAN NAME The VLAN Name of the entry in the forwarding database table that has been permanently learned by the
Switch.
MAC Address The MAC address of the entry in the forwarding database table that has been permanently learned by the
Switch.
Unit The ID number of the Switch in the switch stack that has permanently learned the MAC address.
Port The ID number of the port that has permanently learned the MAC address.
Type The type of MAC address in the forwarding database table. Only entries marked Secured_Permanent can
be deleted.
Delete Click the in this field to delete the corresponding MAC address that was permanently learned by the
Switch.
